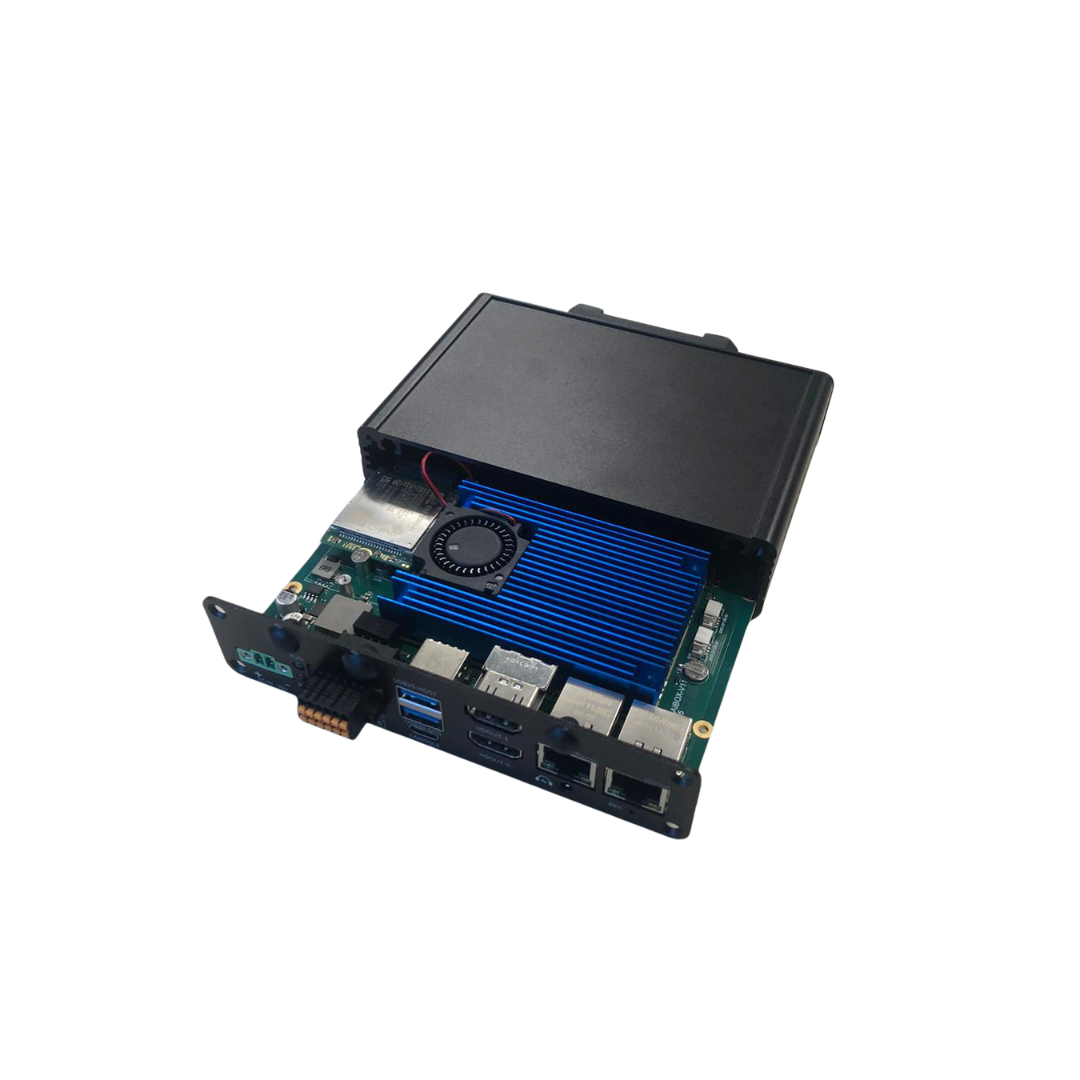

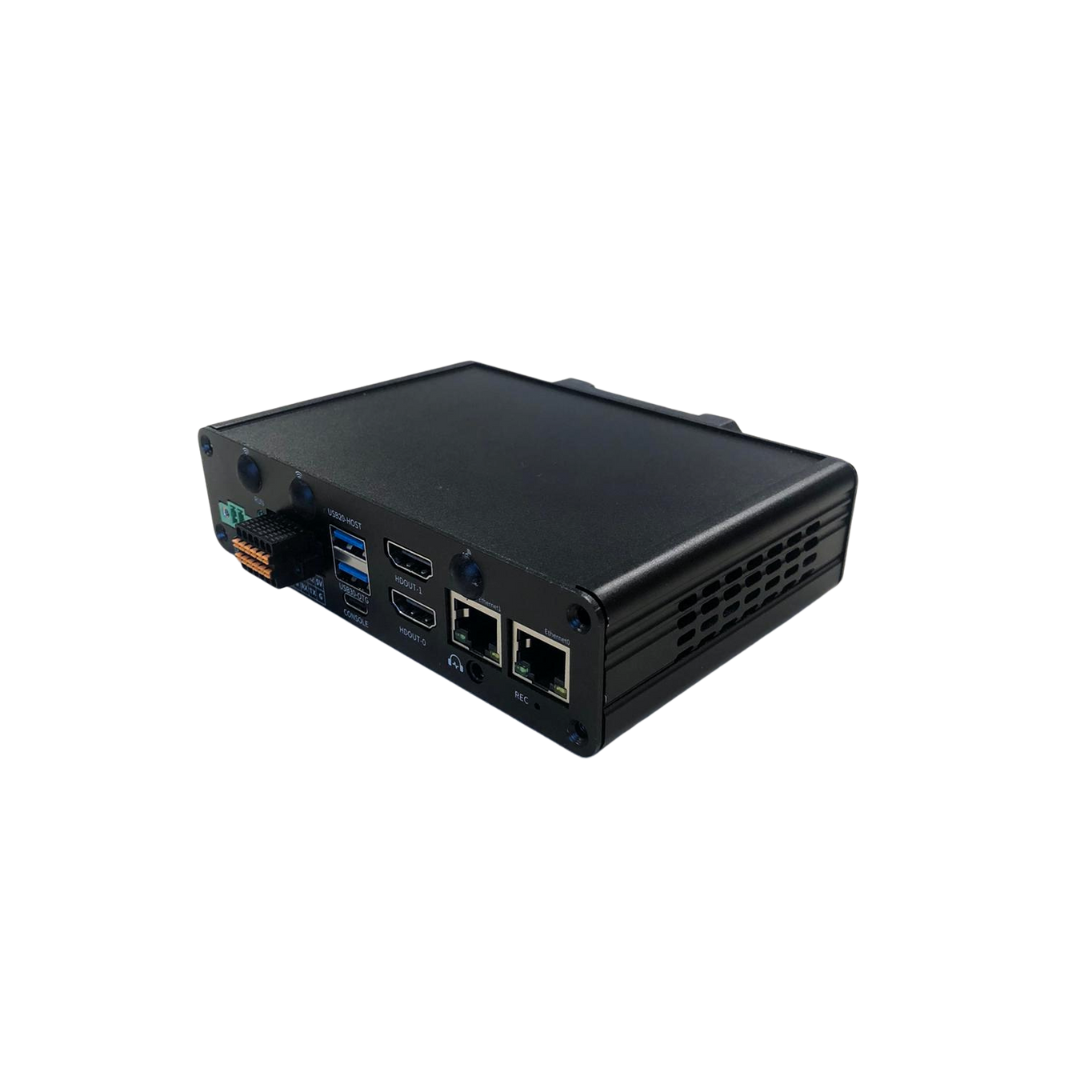

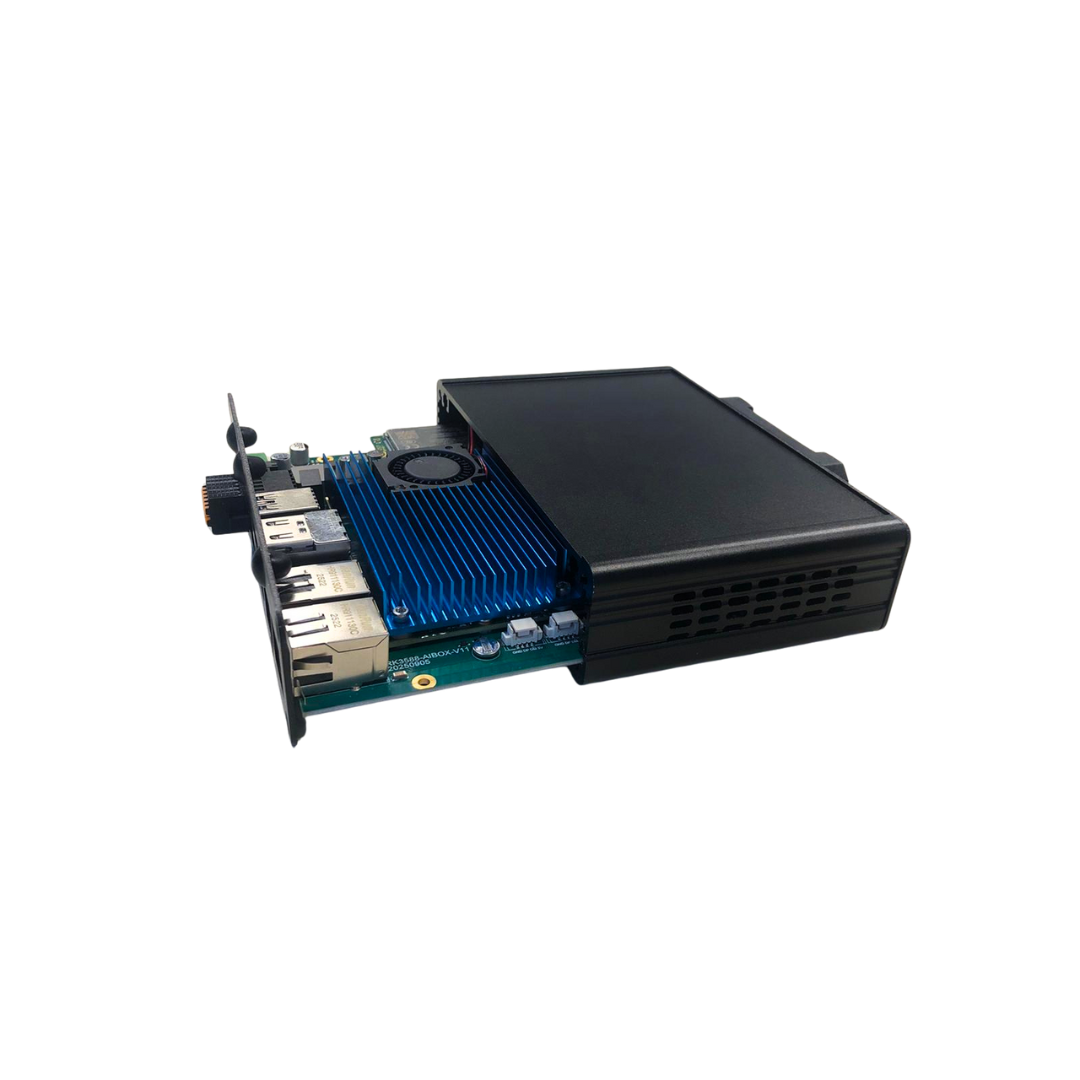

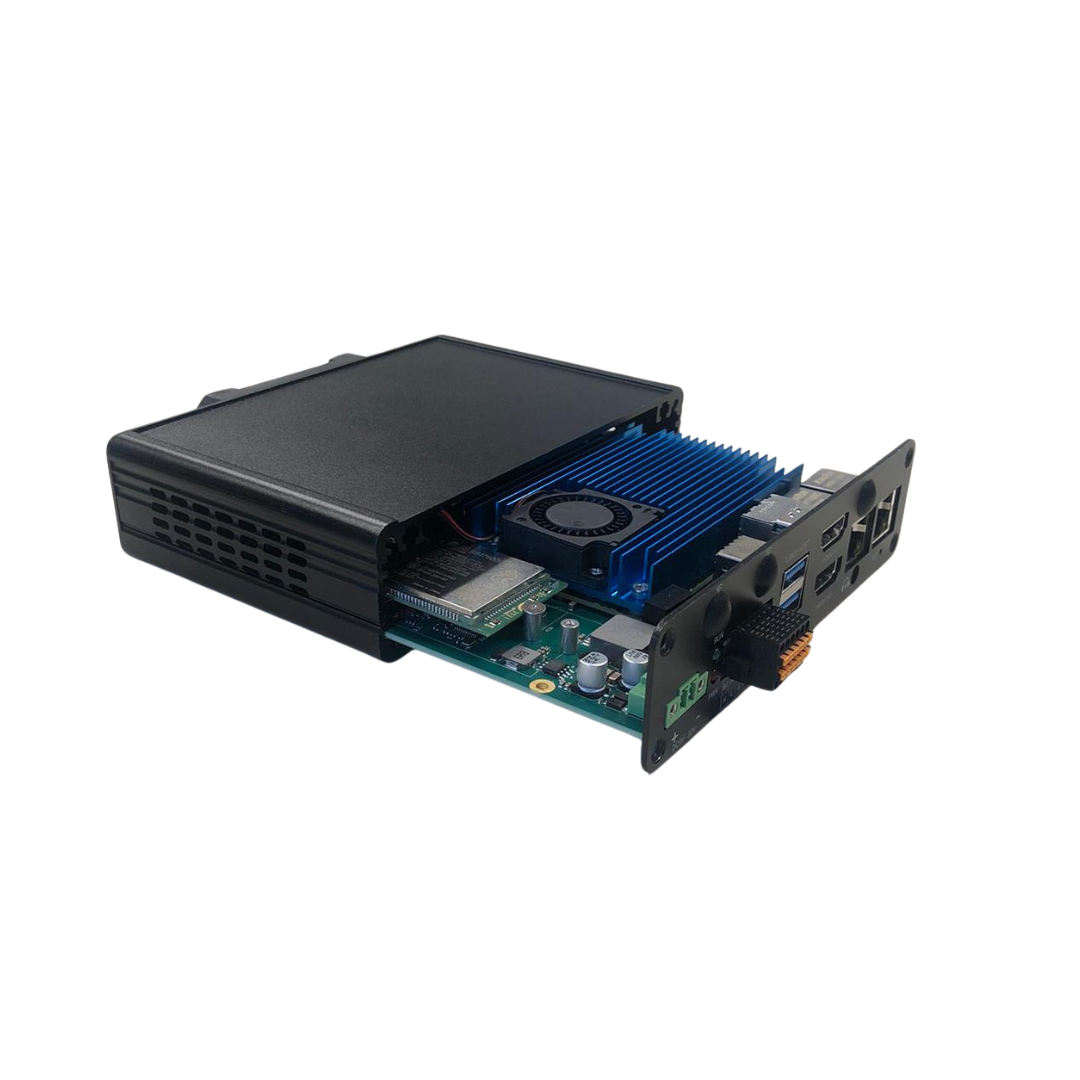

This RK3588-based industrial edge gateway is a high-performance platform designed for advanced edge computing, AI inference, and data-intensive industrial applications. Powered by an octa-core processor combining Cortex‑A76 and Cortex‑A55 cores, it delivers strong computing performance while maintaining energy efficiency. With an integrated 6 TOPS NPU, the device is well suited for real-time AI workloads such as machine vision, video analytics, intelligent sensing, and local decision-making at the edge.

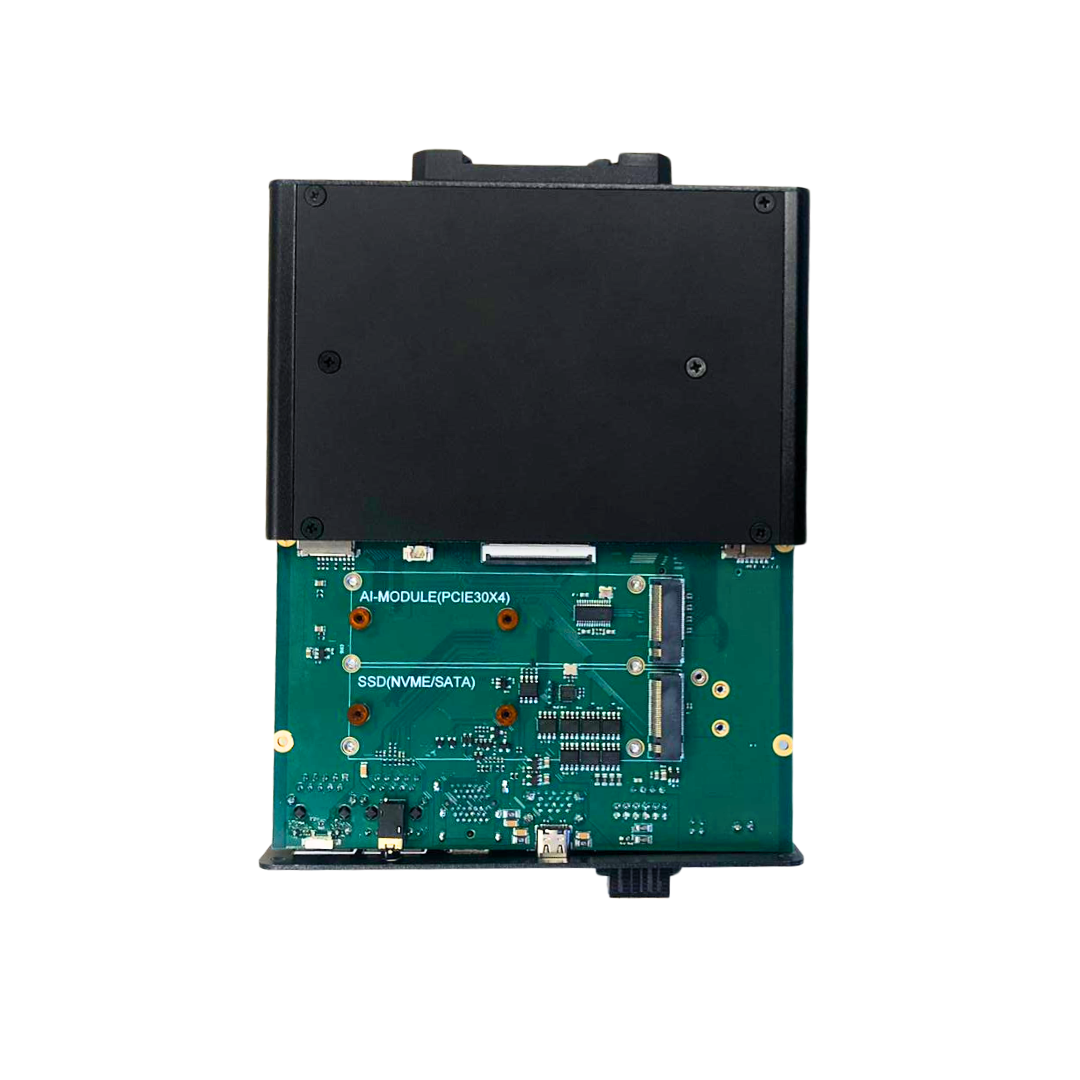

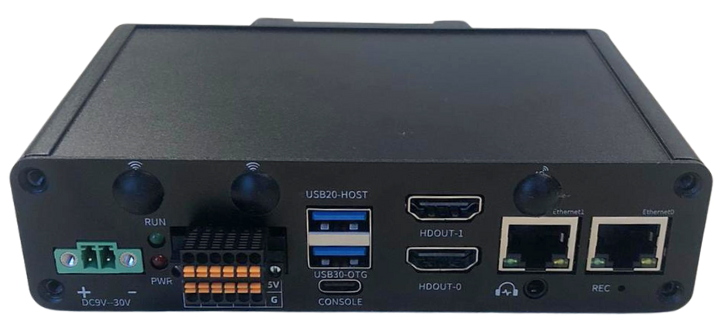

Built for industrial connectivity, the gateway supports a wide range of isolated interfaces to reliably connect machines, sensors, and control systems. Dual Gigabit Ethernet, isolated RS485, CAN bus, GPIO, and multiple USB interfaces enable seamless integration into automation, energy management, and monitoring systems. Optional WiFi, Bluetooth, and 4G/5G connectivity allow deployment in remote or mobile environments where wired networks are unavailable. High-speed PCIe and NVMe storage support ensure fast data handling for demanding applications.
The system runs Ubuntu 24.04 LTS, offering long-term stability, strong security, and a rich software ecosystem for rapid development. Its open-source kernel and U‑Boot provide maximum flexibility for secondary development, hardware adaptation, and custom application design. Built-in support for common industrial protocols and software libraries simplifies device integration, protocol conversion, and edge-to-cloud communication.

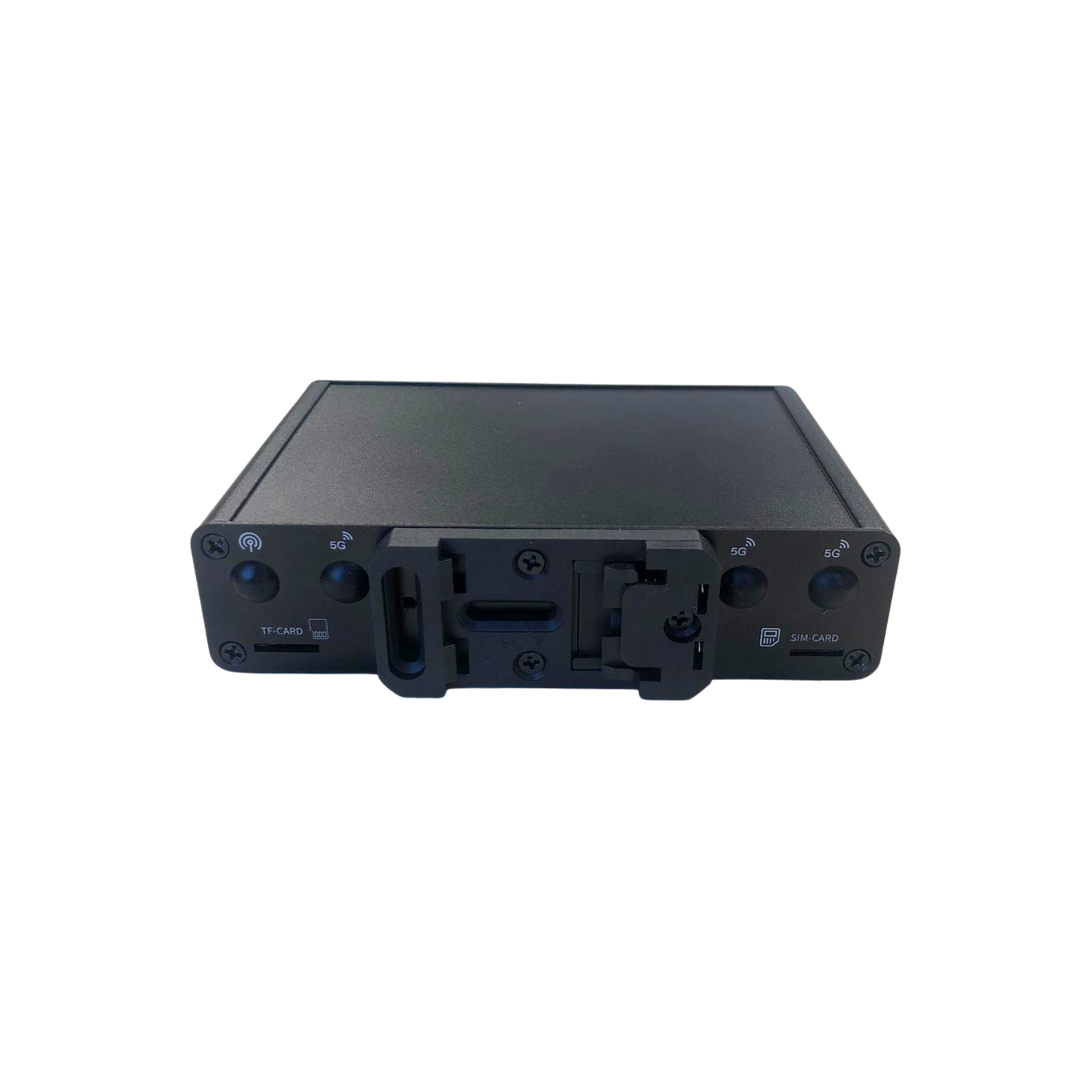

Designed for long-term deployment, the device supports wide voltage input and flexible mounting via bracket or 35 mm DIN rail. This makes it ideal for factory floors, smart buildings, transportation systems, and edge AI installations. Combining high computing power, industrial-grade interfaces, and an open, future-proof software platform, it is a reliable solution for scalable and intelligent edge deployments.
