PBC-1000

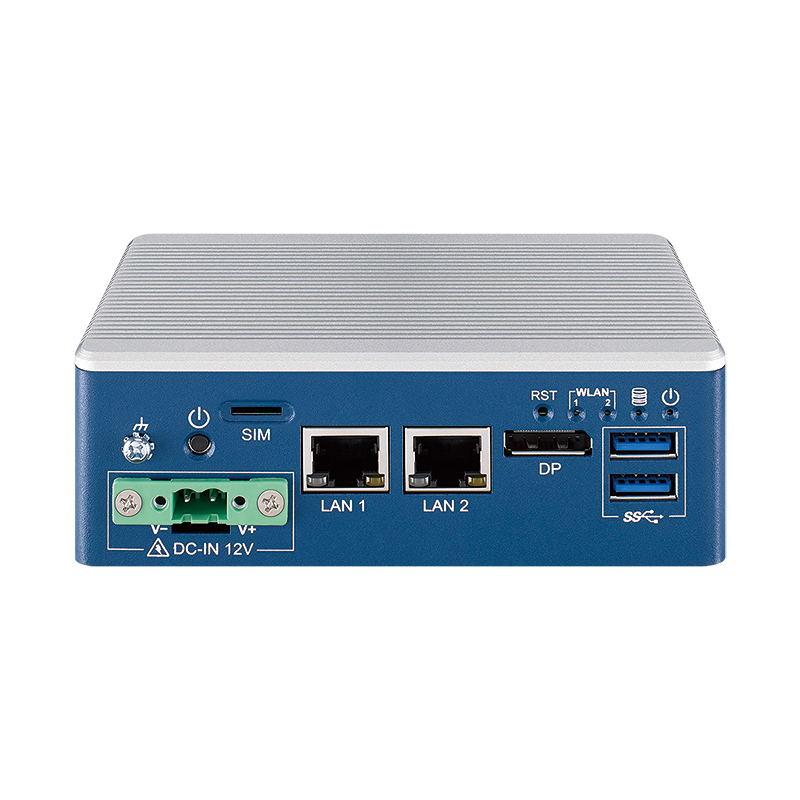

PBC-1000 - Image 2

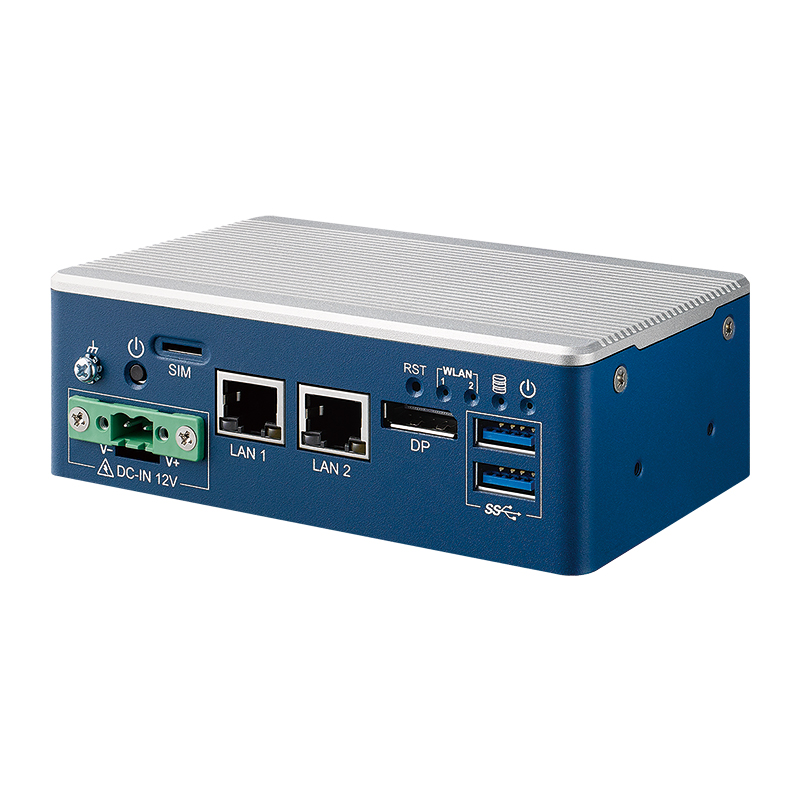

PBC-1000 - Image 3

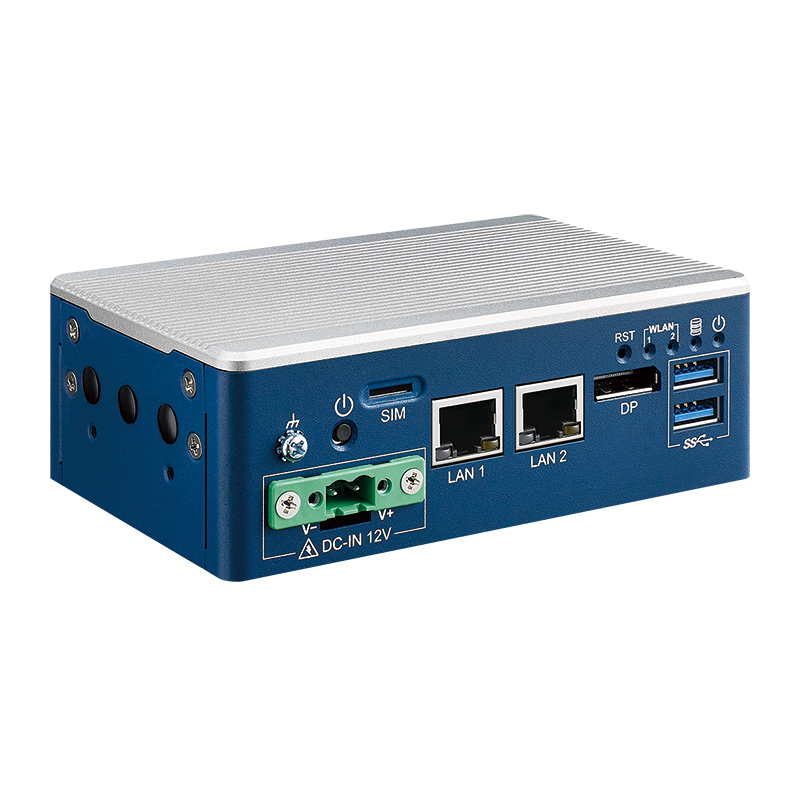

PBC-1000 - Image 4

  • Up to 40% faster CPU and 2× better 3D graphics
  • Ultra-compact, fanless design
  • Wide operating range: -40°C to 70°C

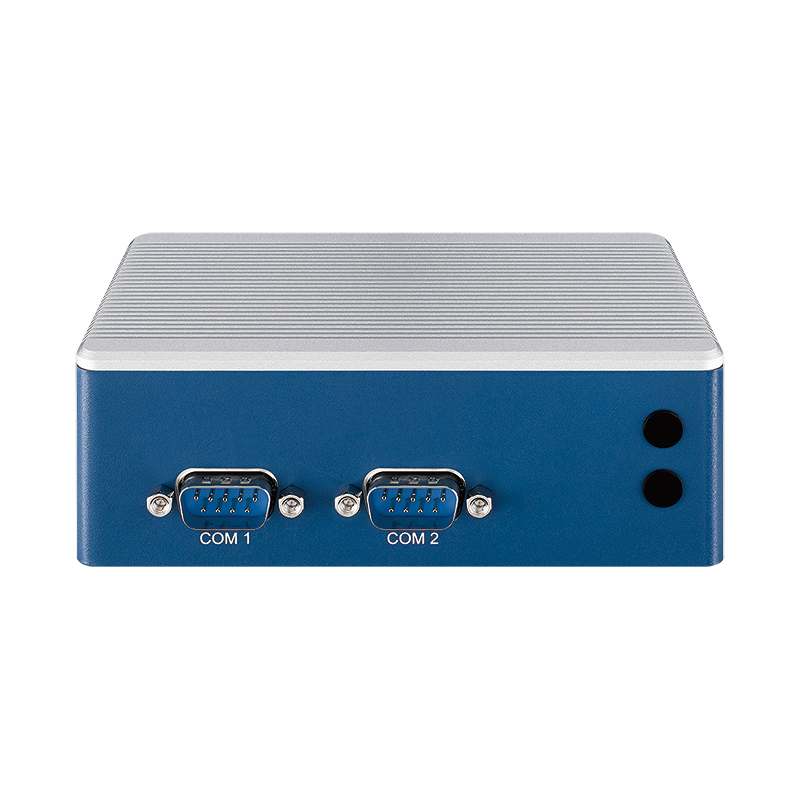

  • Multiple ports: 2× LAN, 2× USB, 2× COM
  • M.2 slots (Key B & E) for expansion
  • SIM slot for cellular/WiFi support
  • Optional AI/Edge computing with OpenVINO
Clear
SKU: N/A Categories: , , Brand:

Description

Further information

Data Sheet



Powered by Intel Atom® x6211E processor (Elkhart Lake), Vecow PBC-1000 supports memory DDR4 3200MHz up 32GB and independent display up to 4K resolution. Vecow PBC-1000 features fanless with small form factor design and supports -40°C to 70°C operating temperature and 12V DC power input, making it perfect solution for Intelligent Control, Energy Management, M2M or Industry 4.0 and AIoT applications.

Additional information

CPU Architecture

Intel Atom, Intel Elkhart Lake
CPU Cores

2 Core
Features

COM Ports RS-232 / RS-485, fanless
Grade

Industrial, Semi-Industrial
Memory

RAM 1GB, RAM 2GB, RAM 4GB, RAM 8GB, RAM 16GB, RAM 32GB
Memory (DDR4 SO-DIMM)

None, 4 GB, 8 GB, 16 GB, 32 GB
