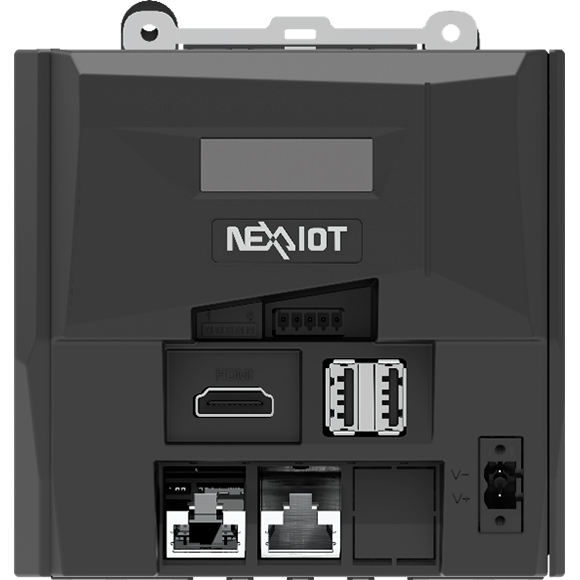

nPac2000 Series

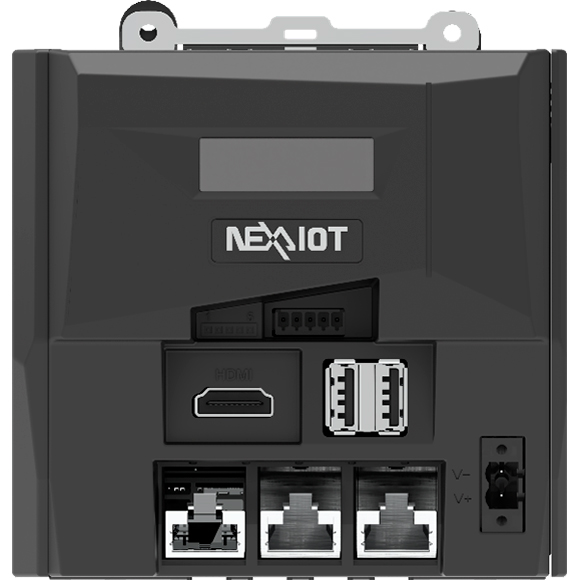

nPac2000 Series - Image 2
nPac2000 Series - Image 3

  • Intel Atom CPU, 4GB RAM
  • M.2 SATA storage slot
  • HDMI + USB + RS485/422
  • 2–3× GbE LAN
  • 24V DC power
  • –15 to 60°C industrial rating
  • Compact 95×100×76 mm

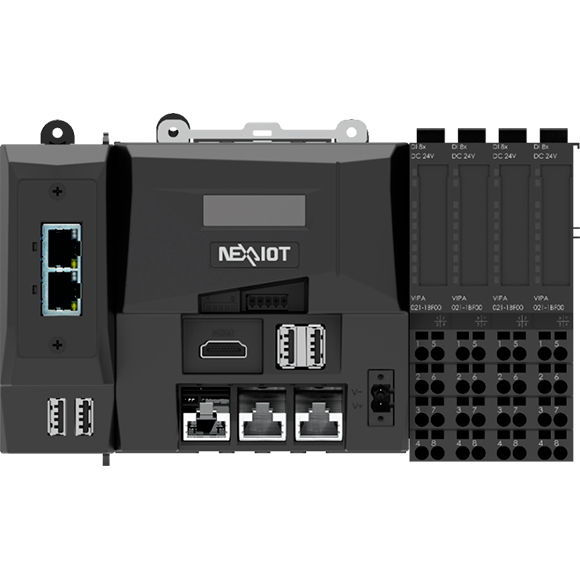

  • Optional CODESYS + slice I/O modules
Clear
SKU: N/A Categories: , , Brand:

Description

Further information

Data Sheet



Powered by Intel Atom® x6212RE processor, 1.20 GHz (formerly codenamed “Elkhart Lake”), nPAC 2000 presents IoT controller for factory automation. Up to 4G LPDDR4 memory, the nPAC 2000 supports operating temperature from -15 ℃~60℃ with typical DC input 24V. The nPAC 2000 has high integration ability with 1 x COM port (RS232/422/485), 2 x USB 3.0 ports and 2 x RJ45 connector with LAN speed and link/active LED which makes it a reliable connection with devices in factory automation applications, IoT applications and communication applications. nPAC 2000 is definitely the top choice for M2M intelligent system as a factory automation controller.

Additional information

CPU Architecture

Intel Atom
CPU Cores

2 Core
Features

COM Ports RS-232 / RS-485, fanless, GPIO
Grade

Industrial, Semi-Industrial
Memory

RAM 4GB
LAN Port Count

2× LAN, 3× LAN
Operating System

No OS, Windows 10
Storage

None, 128GB
Pre‑Installed Software

None, VIC‑Flow, CODESYS SoftPLC
