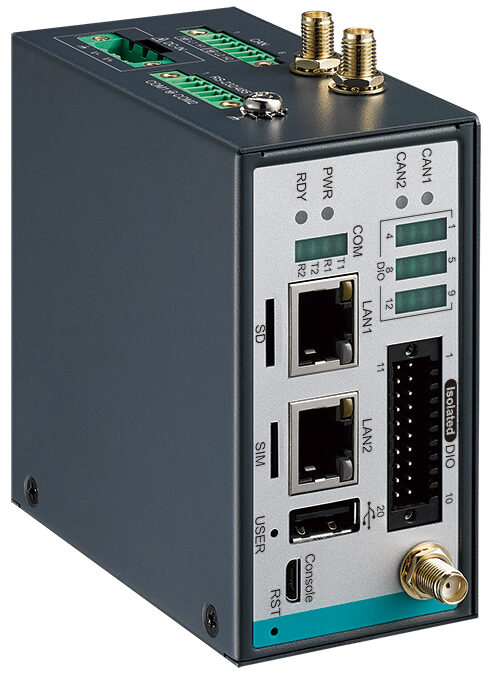

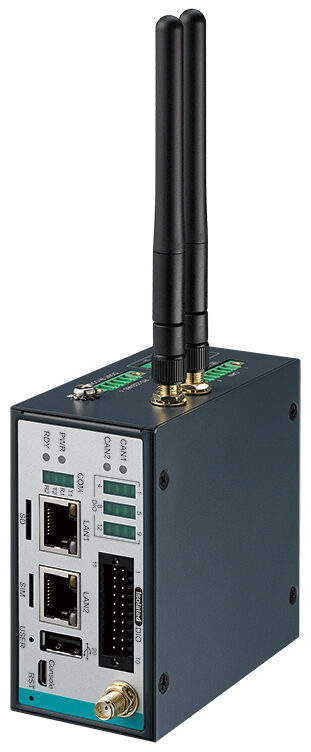

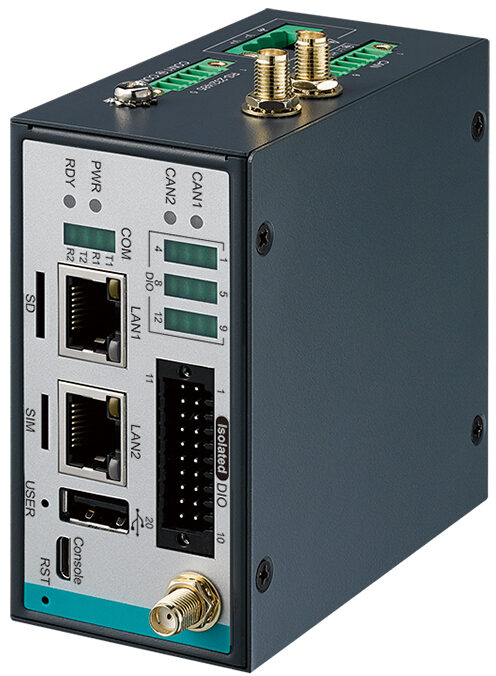

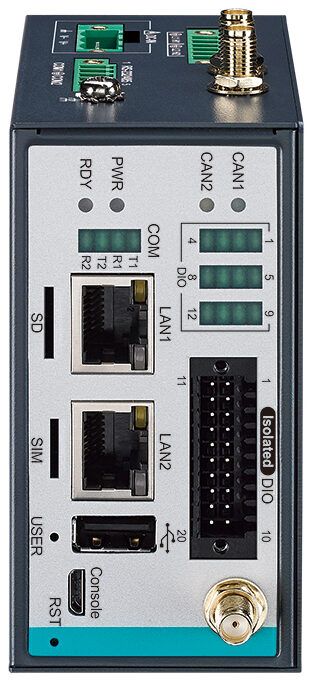

AIC-110
AIC-110 - Image 2
AIC-110 - Image 3
AIC-110 - Image 4

  • Industrial-grade NXP i.MX6ULL Arm Cortex-A7 Processor
  • 9V to 50V wide range DC Power Input
  • Supports Node-RED browser-based flow editor
  • 2 LAN, 1 USB 2.0, 2 COM RS-232/485
  • 12-bit Isolated DIO (8 DI, 4 DO), 2 CAN Bus
  • Mini PCIe with SIM socket for 4G/LTE/WiFi/BT/GPRS/UMTS/LoRaWAN
  • Pre-installed with Debian Stretch R01
  • Compact & Cableless design, Low Power Consumption
Clear
SKU: N/A Categories: , , Brand:

Description

Further information

Data Sheet



AIC-100 is an Arm-based IoT Gateway based on NXP i.MX6ULL Arm Cortex®-A7 Processor. Built for seamless connectivity and efficient communication, Vecow AIC-100 supports Node-RED browser-based flow editor and is packed full of I/O including 2 LAN, 1 USB, 2 COM, 12-bit Isolated DIO, 2 CAN Bus and 1 Mini PCIe. Featuring pre-installed with Debian Stretch R01 and support for 9V to 50V power input, the compact AIC-100 is ideally suited for Energy Management, Building Automation, Charging Station and any AIoT applications.

Additional information

CPU Architecture

ARM Cortex
CPU Cores

1 Core
Features

COM Ports RS-232 / RS-485, fanless, GPIO
Grade

Industrial, Semi-Industrial
Memory

RAM 512MB
Storage

AIC-110: 1 NAND Flash, 512MB, AIC-110A: 1 eMMC, 32GB
DIN Rail Mount

Yes, No
