Seeed Studio | Industrial Edge Server

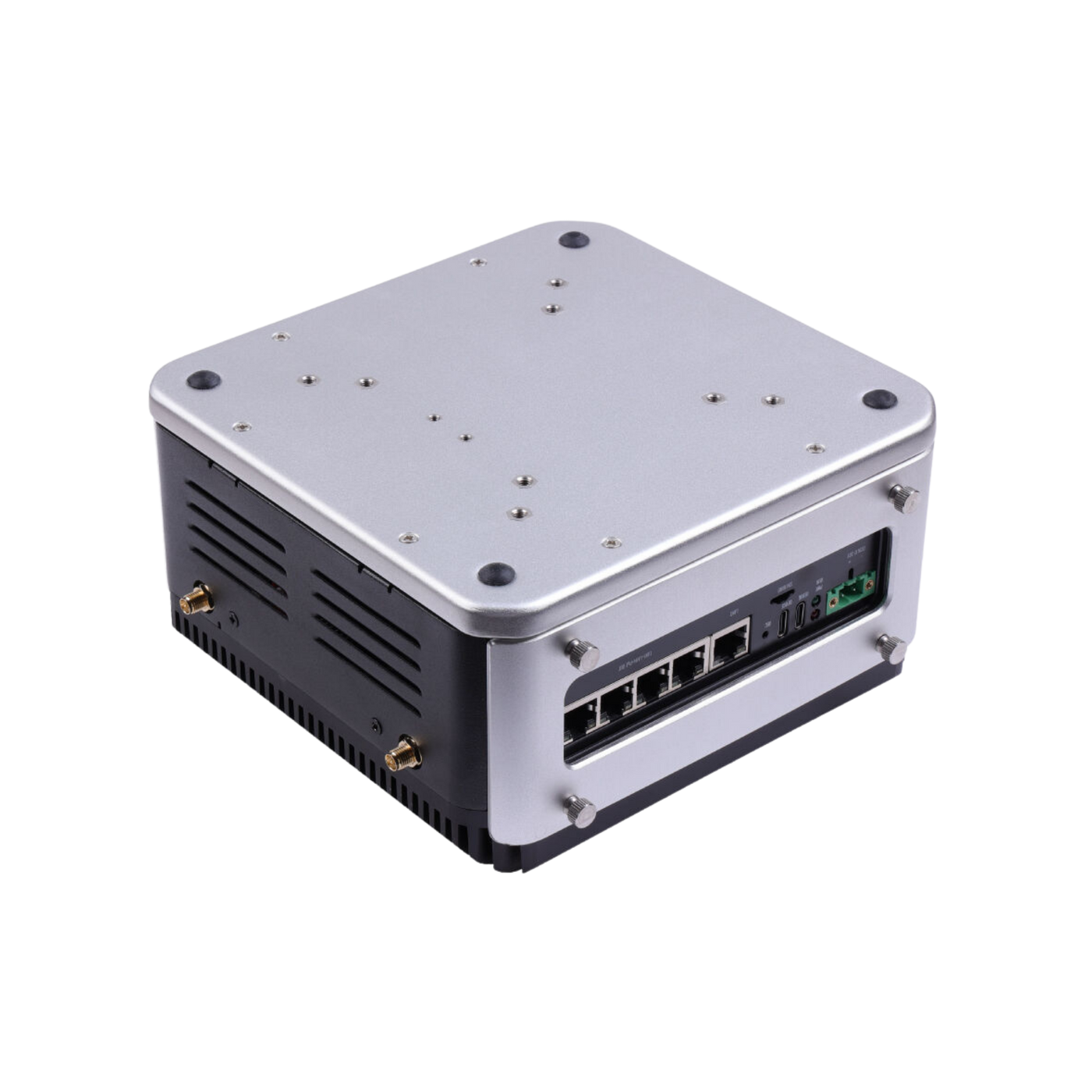

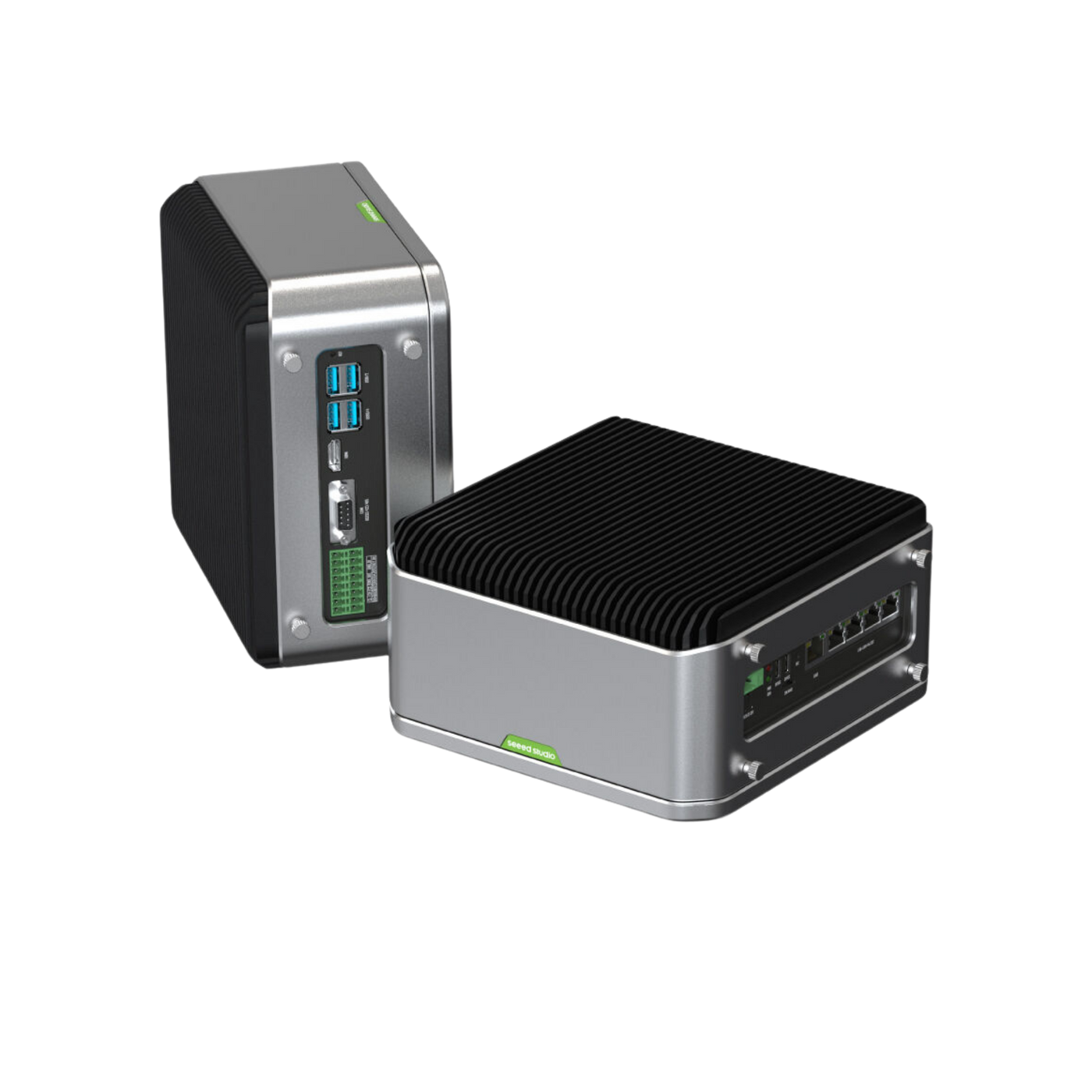

reServer Industrial J4012 – Orin NX 16GB
Industrial Jetson Orin NX 16GB edge server with PoE networking and large expansion potential.
Overview
Product overview
reServer Industrial J4012 – Orin NX 16GB is a B2B-ready system from Seeed Studio selected for the Minidis portfolio. It is designed for edge server, ai video analytics, machine vision, industrial networking and combines deployment-ready hardware with a practical interface set for real-world edge projects.
Why choose this product
- Up to 100 TOPS AI performance
- 4× PoE LAN for distributed vision systems
- 2× SATA bays for local storage expansion
- Fanless build for industrial edge deployments
Typical applications
Edge server, AI video analytics, machine vision, industrial networking.
Key specifications
- CPU / Module: NVIDIA Jetson Orin NX 16GB
- Memory: 16GB LPDDR5
- Storage: 128GB NVMe SSD included + 2× 2.5" SATA bays
- Networking: 1× GbE + 4× GbE PoE (PSE 802.3af)
- I/O: 4× USB 3.1, 2× USB Type-C, 4× DI, 4× DO, DB9 RS232/422/485, CAN, HDMI 2.1, Nano SIM
- Operating system: JetPack 5.1.1 / Linux BSP pre-installed
- Operating temperature: -20°C to 60°C
- Dimensions: 194.33 × 187 × 95.5 mm
Need support with deployment, branding or configuration? Minidis can help with business registration, project advice and rollout support.
Highlights
Key features
- Up to 100 TOPS AI performance
- 4× PoE LAN for distributed vision systems
- 2× SATA bays for local storage expansion
- Fanless build for industrial edge deployments
Technical details
Technical specifications
| SKU | 114110247 |
|---|---|
| CPU / platform | NVIDIA Jetson Orin NX 16GB |
| Memory | 16GB LPDDR5 |
| Storage | 128GB NVMe SSD included + 2× 2.5" SATA bays |
| Networking | 1× GbE + 4× GbE PoE (PSE 802.3af) |
| I/O | 4× USB 3.1, 2× USB Type-C, 4× DI, 4× DO, DB9 RS232/422/485, CAN, HDMI 2.1, Nano SIM |
| Operating system | JetPack 5.1.1 / Linux BSP pre-installed |
| Temperature | -20°C to 60°C |
| Dimensions | 194.33 × 187 × 95.5 mm |
Documentation
Product datasheet
View or download the complete technical datasheet for specifications, interfaces, environmental ratings and mechanical details.
