Seeed Studio | Industrial Edge Server

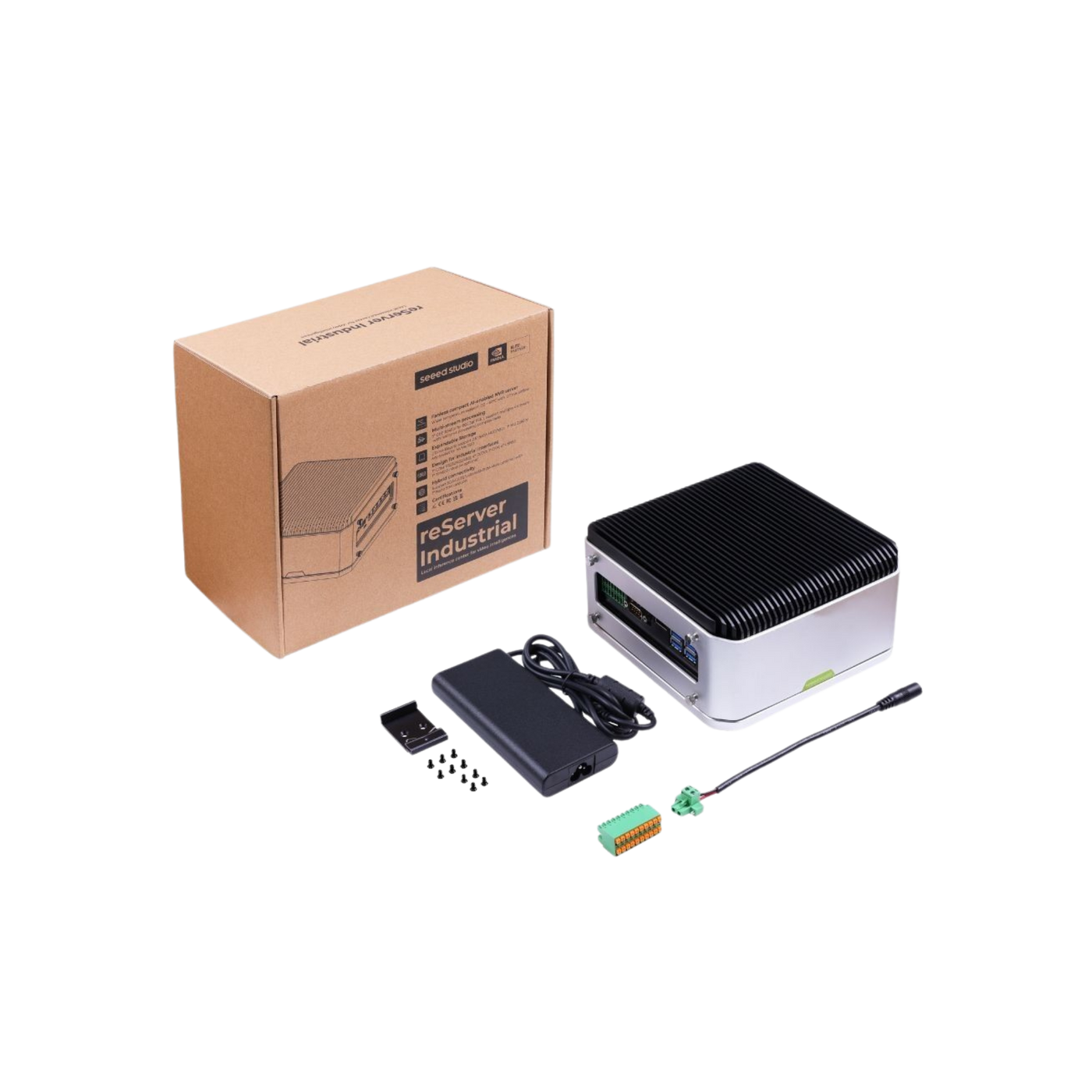

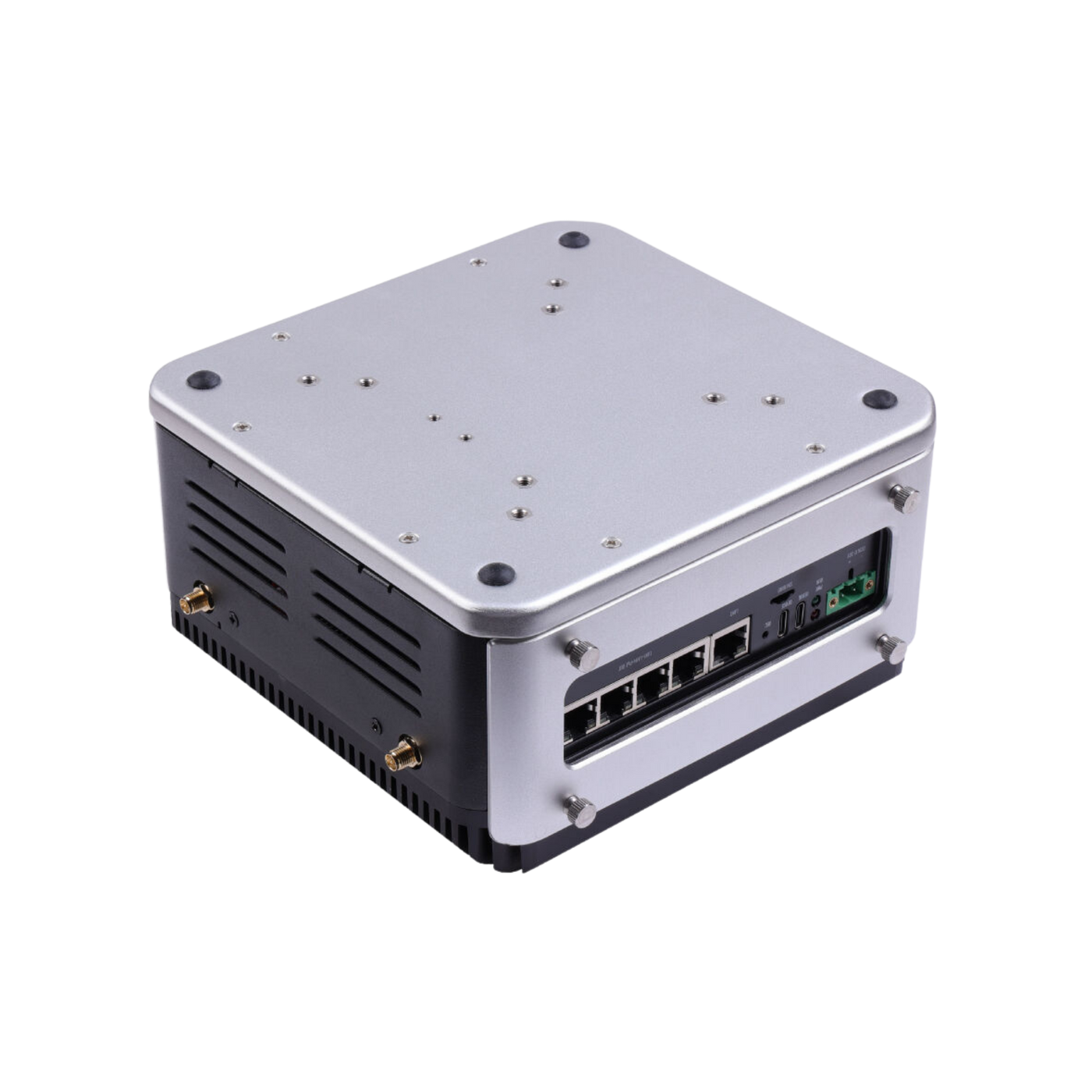

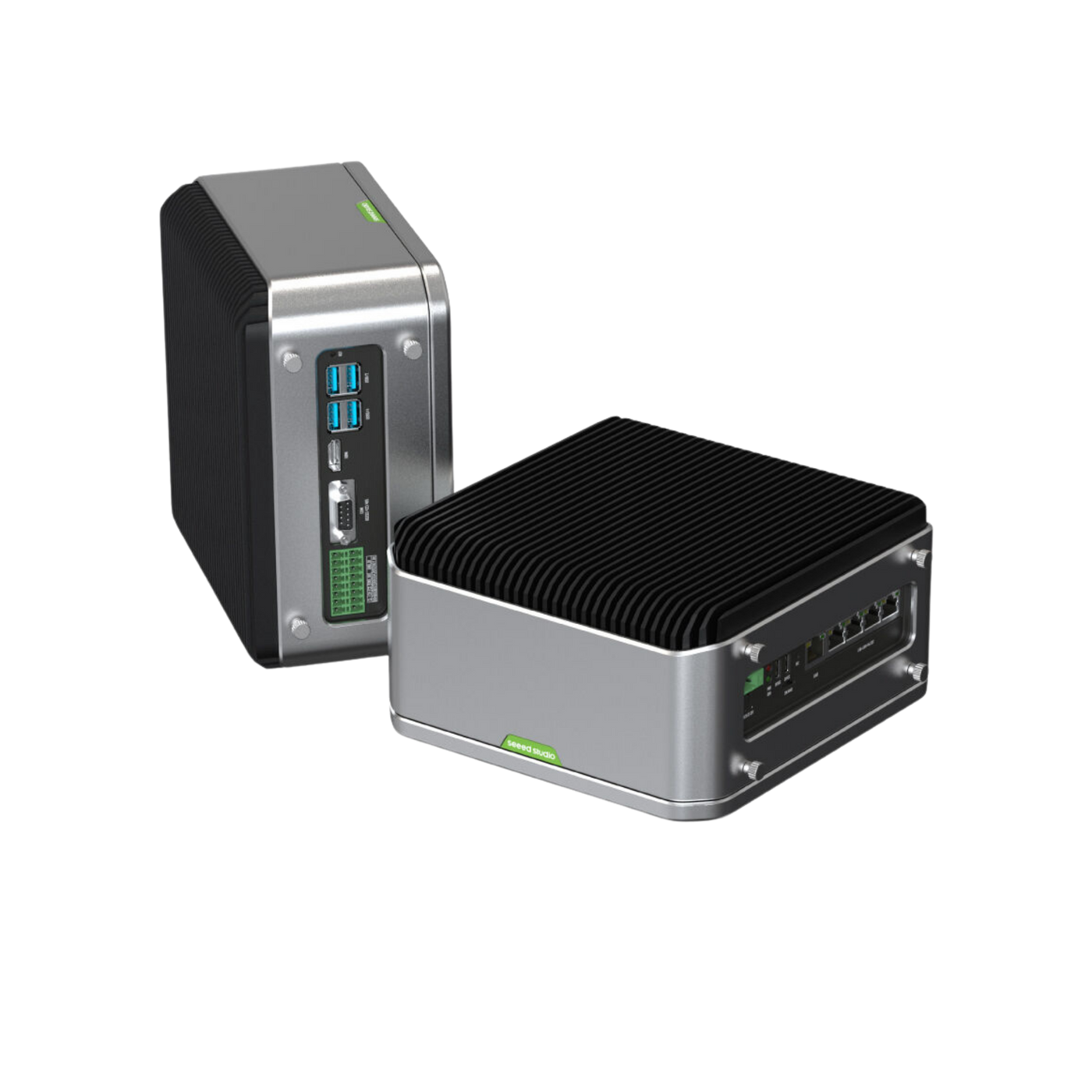

reServer Industrial J3011 – Orin Nano 8GB
Industrial Jetson Orin Nano 8GB edge server with 4× PoE LAN, SATA bays and fanless design.
Overview
Product overview
reServer Industrial J3011 – Orin Nano 8GB is a B2B-ready system from Seeed Studio selected for the Minidis portfolio. It is designed for edge servers, nvr/vision systems, industrial ai gateways, smart city deployments and combines deployment-ready hardware with a practical interface set for real-world edge projects.
Why choose this product
- Fanless industrial server design
- Integrated PoE for IP cameras and edge devices
- Dual SATA bays for local storage expansion
- Built for edge server and AI gateway deployments
Typical applications
Edge servers, NVR/vision systems, industrial AI gateways, smart city deployments.
Key specifications
- CPU / Module: NVIDIA Jetson Orin Nano 8GB
- Memory: 8GB LPDDR5
- Storage: 128GB NVMe SSD included + 2× 2.5" SATA bays
- Networking: 1× GbE + 4× GbE PoE (PSE 802.3af)
- I/O: 4× USB 3.1, 2× USB Type-C, 4× DI, 4× DO, DB9 RS232/422/485, CAN, HDMI 1.4, Nano SIM
- Operating system: JetPack 5.1.1 / Linux BSP pre-installed
- Operating temperature: -20°C to 60°C
- Dimensions: 194.33 × 187 × 95.5 mm
Need support with deployment, branding or configuration? Minidis can help with business registration, project advice and rollout support.
Highlights
Key features
- Fanless industrial server design
- Integrated PoE for IP cameras and edge devices
- Dual SATA bays for local storage expansion
- Built for edge server and AI gateway deployments
Technical details
Technical specifications
| SKU | 114110249 |
|---|---|
| CPU / platform | NVIDIA Jetson Orin Nano 8GB |
| Memory | 8GB LPDDR5 |
| Storage | 128GB NVMe SSD included + 2× 2.5" SATA bays |
| Networking | 1× GbE + 4× GbE PoE (PSE 802.3af) |
| I/O | 4× USB 3.1, 2× USB Type-C, 4× DI, 4× DO, DB9 RS232/422/485, CAN, HDMI 1.4, Nano SIM |
| Operating system | JetPack 5.1.1 / Linux BSP pre-installed |
| Temperature | -20°C to 60°C |
| Dimensions | 194.33 × 187 × 95.5 mm |
Documentation
Product datasheet
View or download the complete technical datasheet for specifications, interfaces, environmental ratings and mechanical details.
