Seeed Studio | Super Edge AI

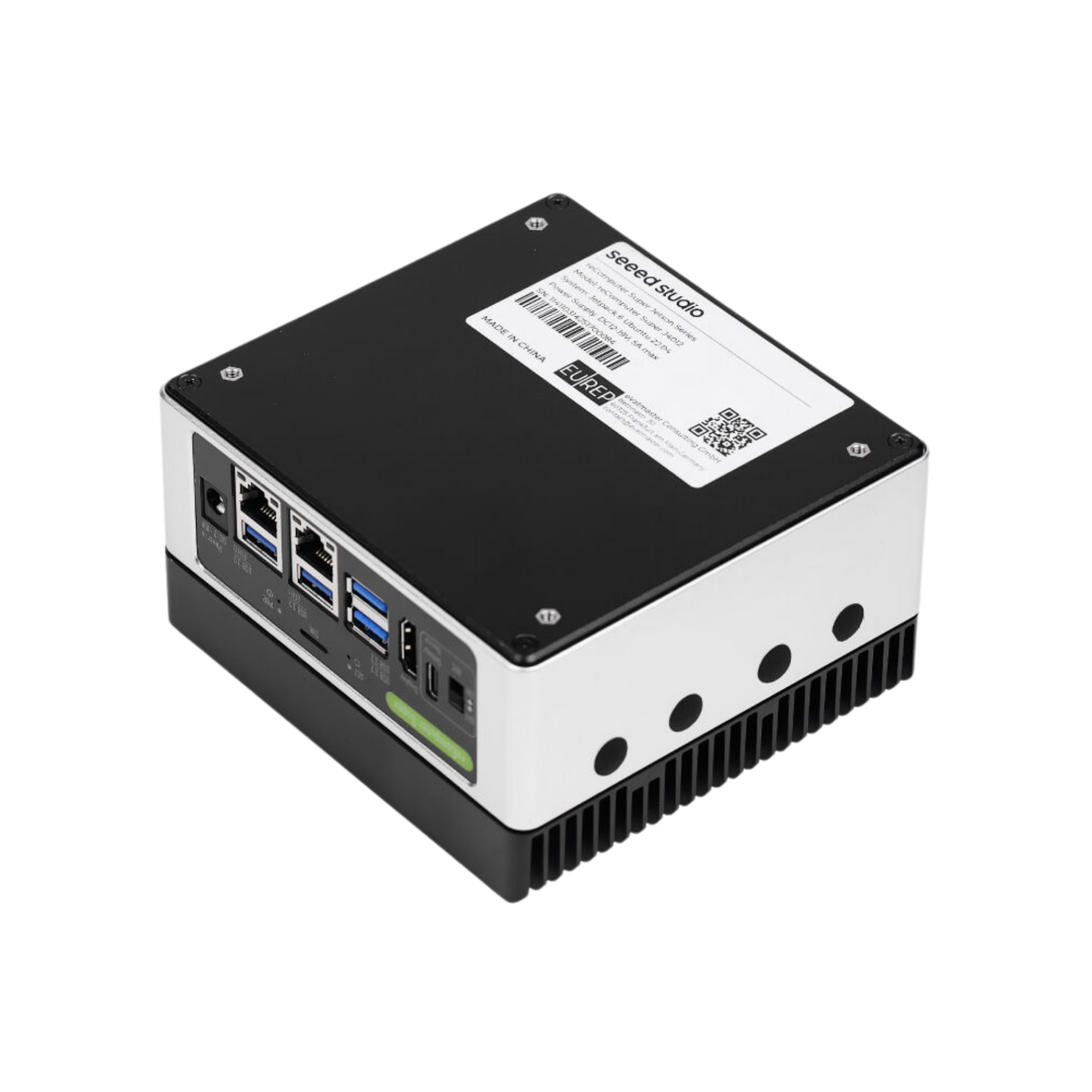

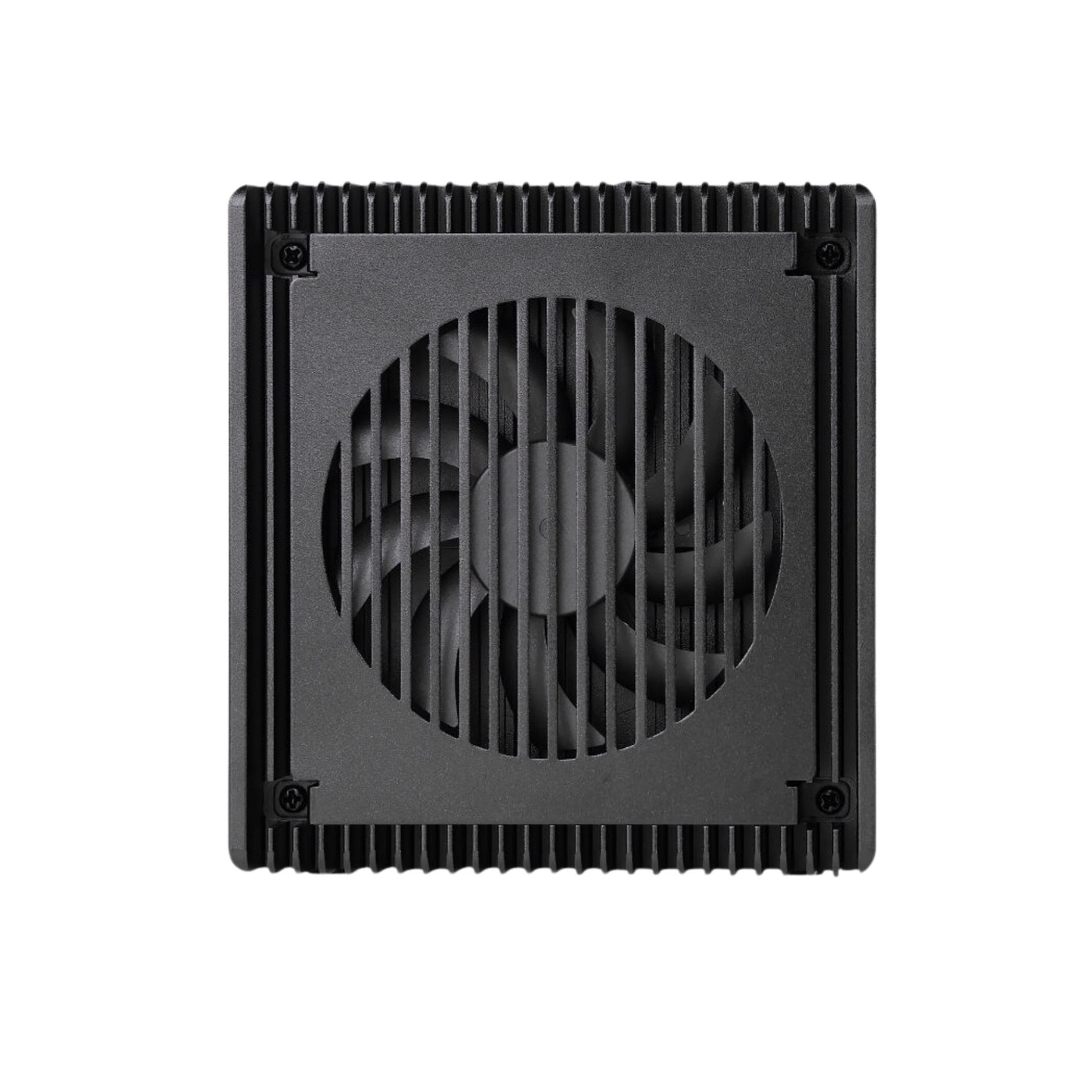

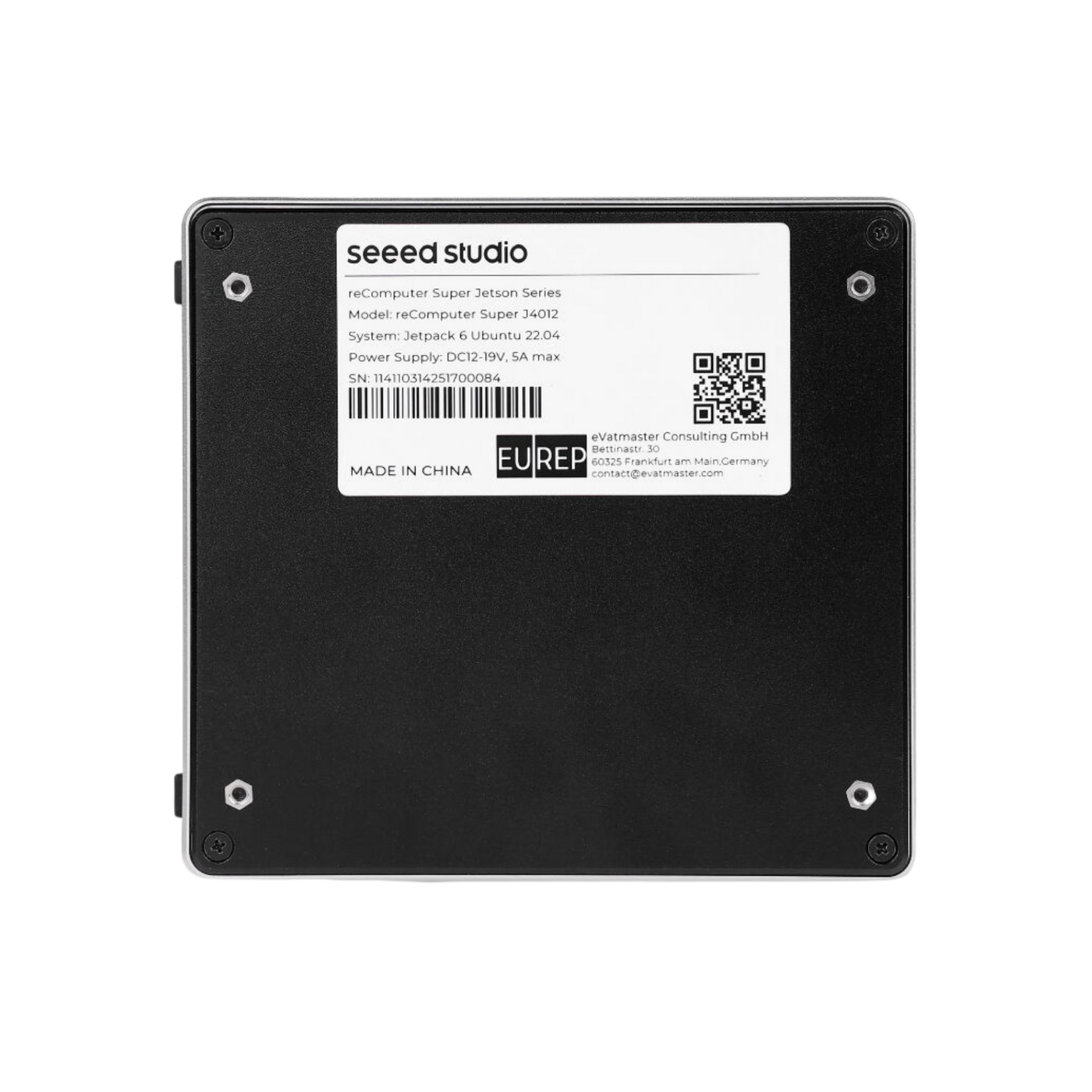

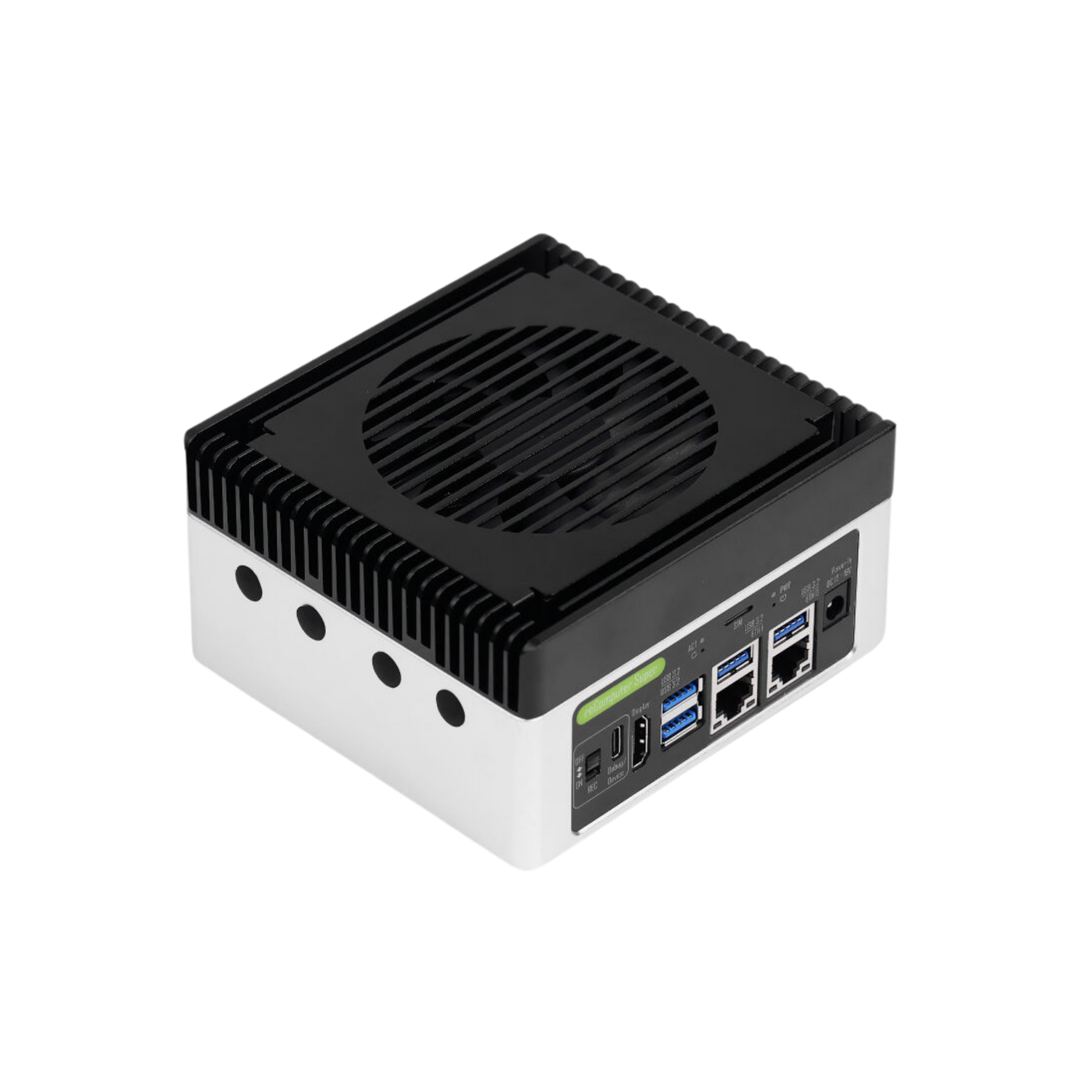

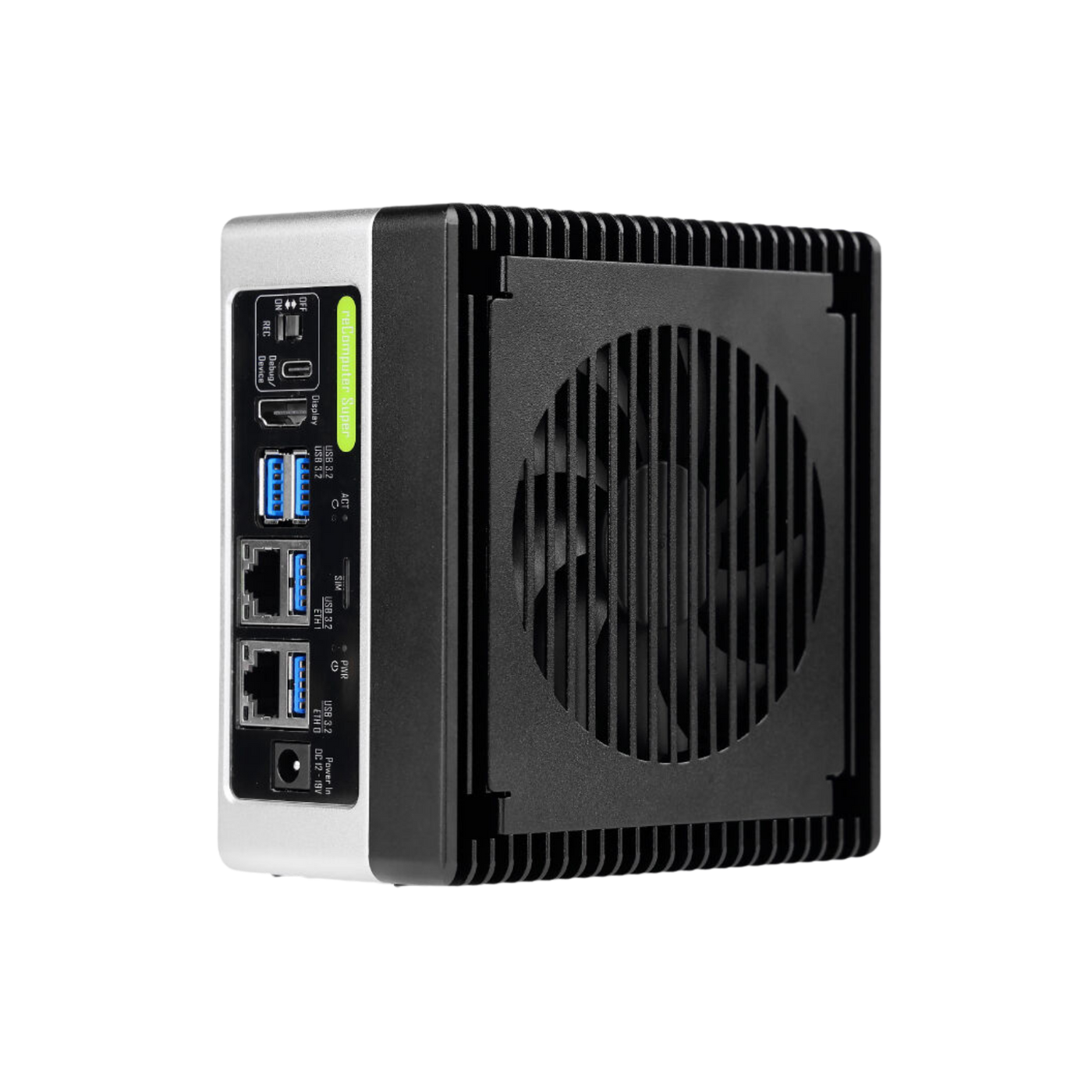

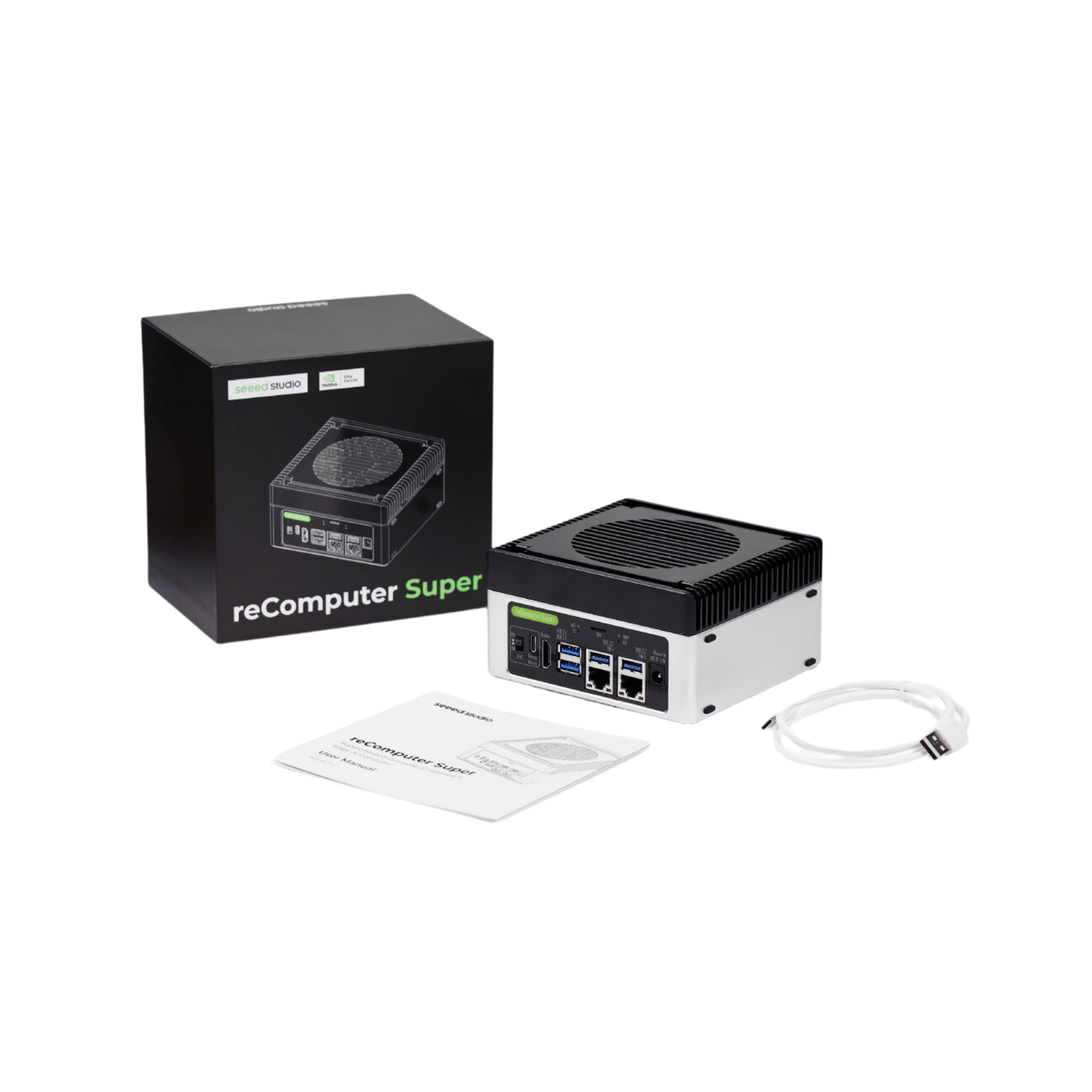

reComputer Super J4012 – Super Mode
Jetson Orin NX 16GB system with Super Mode, 157 TOPS and rich connectivity.
Overview
Product overview
reComputer Super J4012 – Super Mode is a B2B-ready system from Seeed Studio selected for the Minidis portfolio. It is designed for edge ai, robotics, industrial automation, machine vision and combines deployment-ready hardware with a practical interface set for real-world edge projects.
Why choose this product
- Up to 157 TOPS AI performance
- Supercharged platform for development and production
- Rich I/O for multi-sensor AI deployments
- Supports modern AI frameworks and ROS
Typical applications
Edge AI, robotics, industrial automation, machine vision.
Key specifications
- CPU / Module: NVIDIA Jetson Orin NX 16GB
- Memory: 16GB LPDDR5
- Storage: 128GB M.2 NVMe SSD included
- Networking: 2× RJ45 Gigabit Ethernet; M.2 Key E; mini-PCIe for LTE

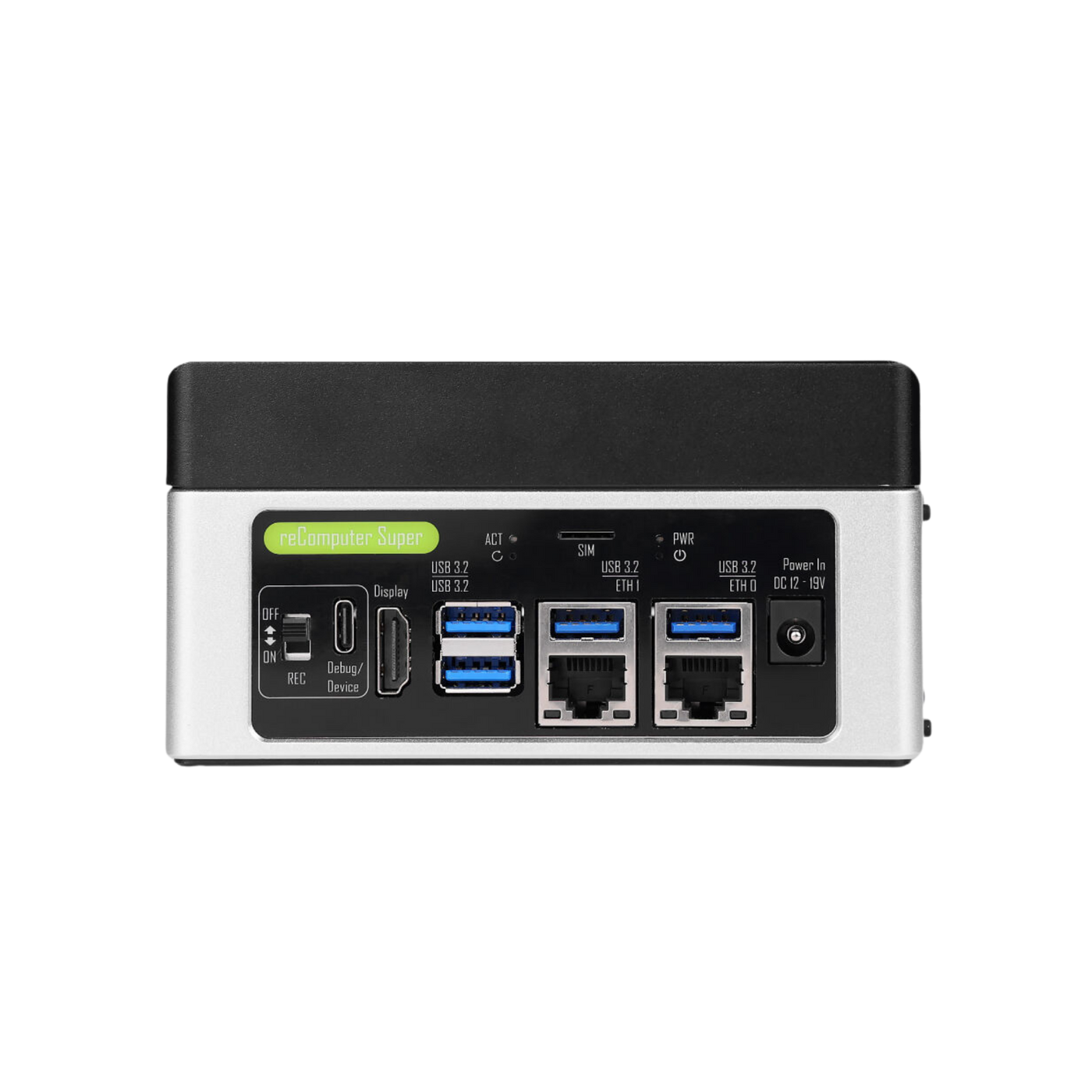

- I/O: 4× USB 3.2 Type-A, USB Type-C debug, HDMI 2.1, 4× CSI, CAN, 40-pin header
- Operating system: JetPack 6.2 / Linux BSP pre-installed
- Operating temperature: -10°C to 60°C
- Dimensions: 130 × 120 × 66 mm
Need support with deployment, branding or configuration? Minidis can help with business registration, project advice and rollout support.
Highlights
Key features
- Up to 157 TOPS AI performance
- Supercharged platform for development and production
- Rich I/O for multi-sensor AI deployments
- Supports modern AI frameworks and ROS
Technical details
Technical specifications
| SKU | 114110314 |
|---|---|
| CPU / platform | NVIDIA Jetson Orin NX 16GB |
| Memory | 16GB LPDDR5 |
| Storage | 128GB M.2 NVMe SSD included |
| Networking | 2× RJ45 Gigabit Ethernet; M.2 Key E; mini-PCIe for LTE |
| I/O | 4× USB 3.2 Type-A, USB Type-C debug, HDMI 2.1, 4× CSI, CAN, 40-pin header |
| Operating system | JetPack 6.2 / Linux BSP pre-installed |
| Temperature | -10°C to 60°C |
| Dimensions | 130 × 120 × 66 mm |
Documentation
Product datasheet
View or download the complete technical datasheet for specifications, interfaces, environmental ratings and mechanical details.
