reComputer Robotics J3011 with GMSL Extension – Super Mode
Jetson Orin Nano 8GB robotics platform with GMSL expansion and Super/MAXN support.
Overview
Product overview
reComputer Robotics J3011 with GMSL Extension – Super Mode is a B2B-ready system from Seeed Studio selected for the Minidis portfolio. It is designed for autonomous robots, amr, machine vision, multi-sensor robotics and combines deployment-ready hardware with a practical interface set for real-world edge projects.
Why choose this product
- Super/MAXN mode for higher robotics performance
- GMSL2-ready for multi-camera robotics projects
- Robotics-focused I/O including CAN, I2C and UART
- Ideal as a robotic brain for autonomous systems
Typical applications
Autonomous robots, AMR, machine vision, multi-sensor robotics.
Key specifications
- CPU / Module: NVIDIA Jetson Orin Nano 8GB
- Memory: 8GB LPDDR5
- Storage: 128GB M.2 NVMe SSD included
- Networking: 2× RJ45 Gigabit Ethernet; M.2 Key E for Wi-Fi/Bluetooth; M.2 Key B for 5G

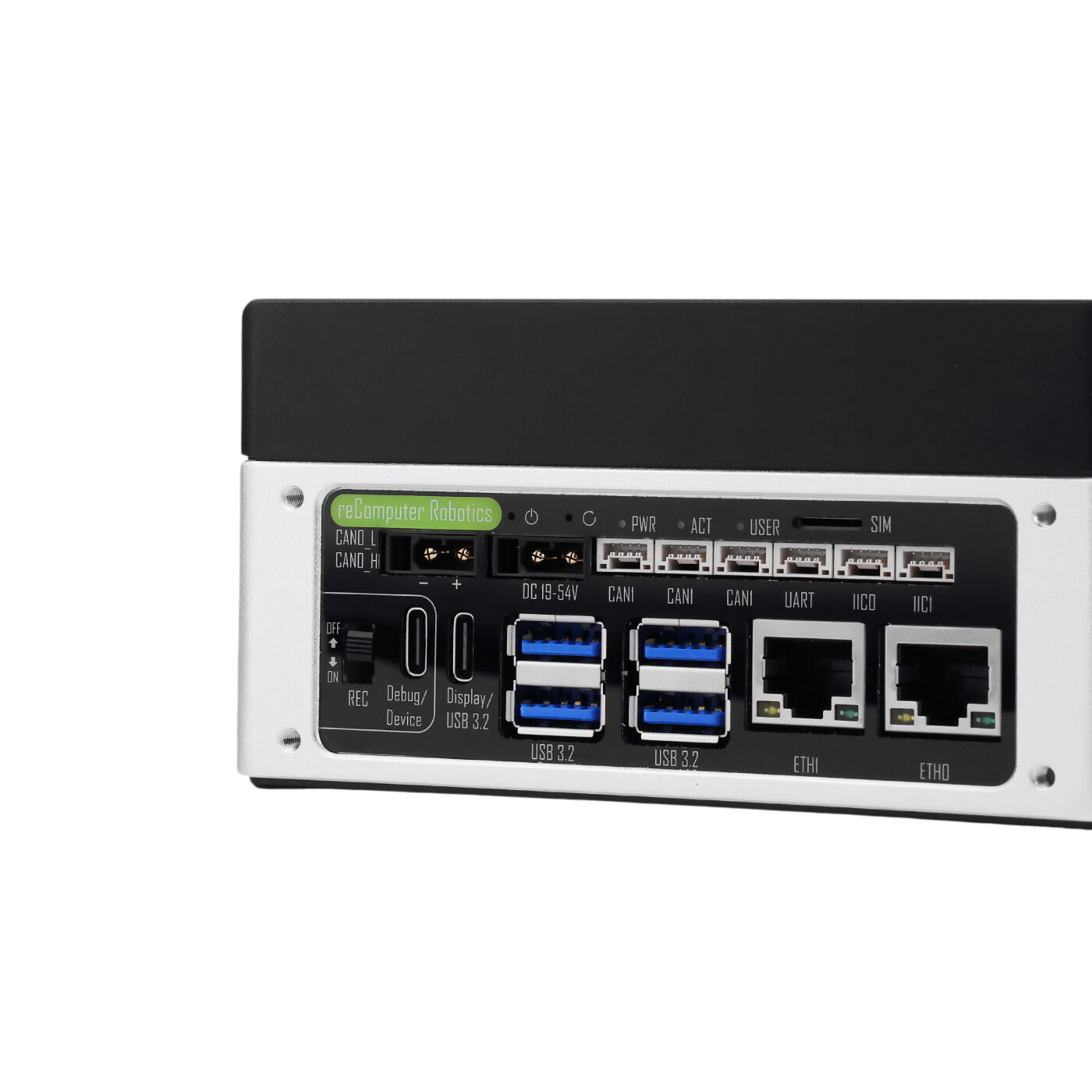

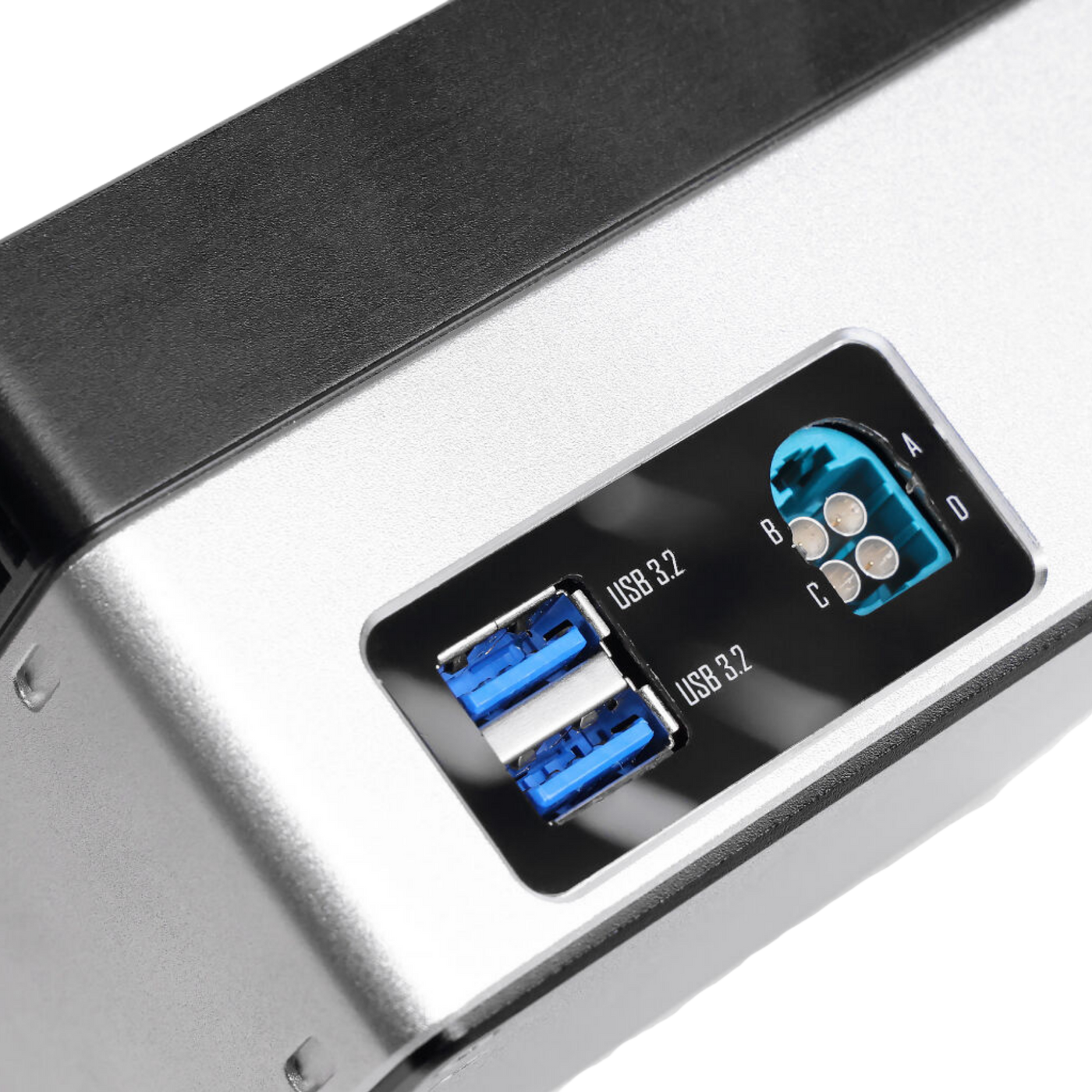

- I/O: 6× USB 3.2 Type-A, USB Type-C host + debug, 2× CAN, I2C, UART, DP1.4, optional 4-in-1 GMSL2
- Operating system: JetPack 6 pre-installed; JetPack 7.2 supported
- Operating temperature: -20°C to 55°C (25W); -20°C to 50°C (MAXN)

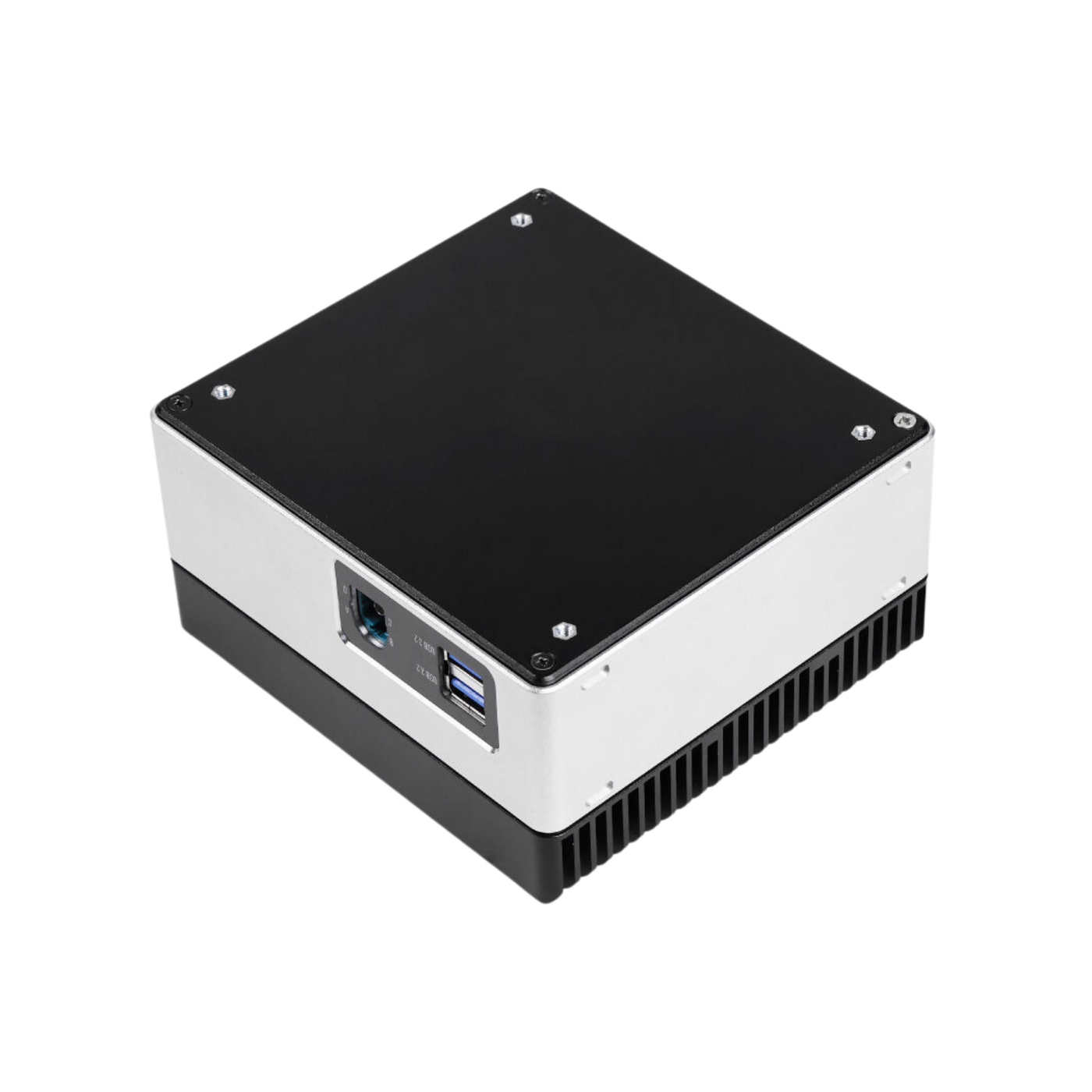

- Dimensions: 115 × 115 × 38 mm
Need support with deployment, branding or configuration? Minidis can help with business registration, project advice and rollout support.
Highlights
Key features
- Super/MAXN mode for higher robotics performance
- GMSL2-ready for multi-camera robotics projects
- Robotics-focused I/O including CAN, I2C and UART
- Ideal as a robotic brain for autonomous systems
Technical details
Technical specifications
| SKU | 100001302 |
|---|---|
| CPU / platform | NVIDIA Jetson Orin Nano 8GB |
| Memory | 8GB LPDDR5 |
| Storage | 128GB M.2 NVMe SSD included |
| Networking | 2× RJ45 Gigabit Ethernet; M.2 Key E for Wi-Fi/Bluetooth; M.2 Key B for 5G |
| I/O | 6× USB 3.2 Type-A, USB Type-C host + debug, 2× CAN, I2C, UART, DP1.4, optional 4-in-1 GMSL2 |
| Operating system | JetPack 6 pre-installed; JetPack 7.2 supported |
| Temperature | -20°C to 55°C (25W); -20°C to 50°C (MAXN) |
| Dimensions | 115 × 115 × 38 mm |
Documentation
Product datasheet
View or download the complete technical datasheet for specifications, interfaces, environmental ratings and mechanical details.
