All the different Jetson Orin Nano models and what they can do
Jetson Orin Nano is NVIDIA’s compact edge AI platform for developers, robotics builders, vision projects, and embedded products that need local inference without a full desktop GPU. If you are comparing all the different Jetson Orin Nano models and what they can do, the key distinction is simple: there are 4GB and 8GB production modules, plus the Jetson Orin Nano Super Developer Kit for prototyping. The best choice depends on memory needs, performance targets, power budget, and whether you are experimenting or building a deployable product.
What Jetson Orin Nano models are actually available?
The main Jetson Orin Nano models are the Jetson Orin Nano 4GB module, the Jetson Orin Nano 8GB module, and the Jetson Orin Nano Super Developer Kit. The 4GB and 8GB versions are production modules intended for integration into custom systems, while the developer kit combines an 8GB-class module with a reference carrier board and accessories for learning, testing, and prototyping. NVIDIA’s Jetson lineup also includes other Jetson Orin models, such as Orin NX and AGX Orin, but those sit above Nano when you need more compute, memory, or industrial headroom.
The Jetson Orin Nano 4GB module is the efficient baseline
The Jetson Orin Nano 4GB module is the lower-memory option, but it is still much more capable than the original Jetson Nano generation. In its original mode, it provides 20 sparse INT8 TOPS, 512 CUDA cores, 16 Tensor Cores, a 6-core Arm Cortex-A78 CPU, and 34 GB/s of memory bandwidth. With Super Mode support, NVIDIA lists it at 34 sparse INT8 TOPS and 51 GB/s of DRAM bandwidth, assuming the right JetPack and flashing configuration are used.
That makes the 4GB model a practical fit for focused edge workloads: single-purpose computer vision, lightweight detection, sensor processing, compact robotics projects, and constrained systems where cost and power matter. The main limitation is memory. Four gigabytes can be enough for optimized vision pipelines, smaller neural networks, and carefully managed services, but it leaves less room for large language models, multiple containers, heavy desktop use, or several AI pipelines running at once.
Use the 4GB module when the application is well-defined. If your model is small, your camera count is modest, and your software stack is lean, it can be an efficient production choice. If you are still exploring requirements, the tighter memory ceiling may slow you down.
The Jetson Orin Nano 8GB module offers more breathing room
The Jetson Orin Nano 8GB module is the more flexible production option. In original reference specs, it doubles the GPU resources compared with the 4GB module, with 1024 CUDA cores, 32 Tensor Cores, 40 sparse INT8 TOPS, and 68 GB/s memory bandwidth. In Super Mode, NVIDIA lists the 8GB Nano at 67 sparse INT8 TOPS, 33 dense INT8 TOPS, a 1.7 GHz CPU clock, and 102 GB/s DRAM bandwidth.
The extra memory matters as much as the extra compute. Eight gigabytes gives developers more space for modern AI frameworks, pre-processing, post-processing, camera streams, databases, middleware, and model experimentation. It is the more comfortable choice for robotics stacks, smart cameras with multiple tasks, local generative AI experiments, and vision-language workflows.
This is also the safer module if you expect your software to grow. Real edge AI projects often start with one model and later add tracking, logging, remote updates, dashboards, or a second inference stage. The 8GB version gives you more room before memory pressure becomes the main engineering problem.

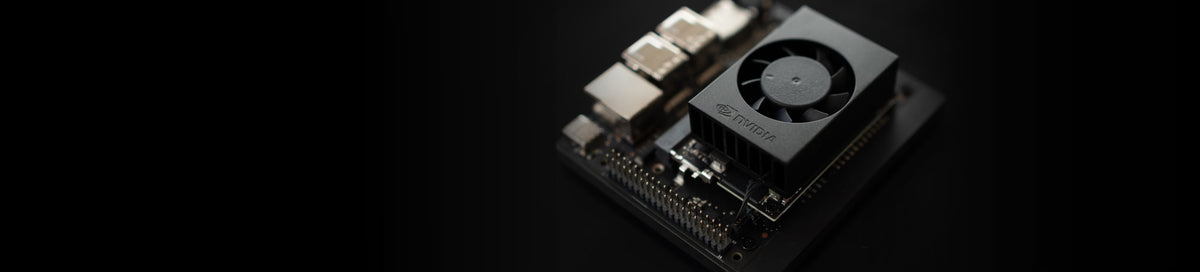

The Jetson Orin Nano Super Developer Kit is for building and testing
The Jetson Orin Nano Super Developer Kit is the easiest entry point if you want to start quickly. It is a complete development platform rather than a bare production module, and NVIDIA describes it as a compact generative AI edge computer for developers, students, educators, makers, and robotics researchers. The kit supports up to 67 INT8 TOPS and up to 102 GB/s memory bandwidth with the latest software stack.
The developer kit is useful because it removes a lot of hardware integration work at the beginning. You get a reference carrier board, standard connectors, display output, networking, USB, camera connectors, expansion headers, and storage options, so you can focus on software before designing a custom carrier. NVIDIA’s documentation notes that the kit includes a Jetson Orin Nano module with a microSD card slot and a reference carrier board for development and prototyping.
Choose the developer kit when you are learning JetPack, testing cameras, benchmarking models, validating thermal needs, or proving an idea before committing to a production design. For finished products, teams usually move from the kit to a production module on a purpose-built carrier board.
Orin Nano specs that matter in real projects
Spec sheets can feel abstract, so it helps to connect the main orin nano specs to what they change in practice.
-
Memory capacity: 4GB is workable for lean applications, while 8GB is better for experimentation, larger models, multitasking, and containerized workflows.
-
Memory bandwidth: Higher bandwidth helps feed the GPU and CPU faster, especially in vision and transformer-style workloads. Super Mode raises bandwidth on both Nano modules when properly enabled.
-
GPU and Tensor Cores: These drive AI inference performance. The 8GB module has twice the CUDA and Tensor Core count of the 4GB module.
-
CPU: Both Nano modules use a 6-core Arm A78-class CPU, which handles application logic, robotics middleware, I/O, and non-GPU tasks.
-
Power modes: Original Nano configurations include lower reference power modes, while newer Super Mode configurations add 25W and MAXN SUPER options. Higher modes can improve performance, but they also increase thermal and power design requirements.
-
I/O and cameras: Jetson Orin Nano modules support high-speed interfaces such as PCIe, USB, MIPI CSI-2 camera lanes, Gigabit Ethernet, and sensor I/O, which is why they are popular for robots, inspection systems, and smart vision devices.
The practical takeaway is that peak TOPS is only one part of the decision. A balanced design also considers camera bandwidth, storage speed, cooling, software optimization, and whether the workload can actually use the available acceleration.
Super Mode changes the comparison
Super Mode is important because it makes the Jetson Orin Nano story less static than older spec comparisons suggest. NVIDIA introduced higher-performance configurations through JetPack updates, unlocking higher CPU, GPU, and memory clocks on supported Jetson Orin Nano and Orin NX modules. For Nano, the newer reference power modes include 25W and MAXN SUPER, and NVIDIA recommends validating thermal design and power profiles for high-performance applications.
This means two devices with the same module name may perform differently depending on software version, flashing configuration, power mode, cooling, and workload. If you are reading older comparisons, check whether they use original modes or Super Mode. For procurement and product planning, make sure your carrier board, power supply, enclosure, and thermal solution can support the mode you intend to ship.
Which Jetson Orin Nano model should you choose?
Choose the Jetson Orin Nano 4GB if your workload is defined, optimized, and memory-light; choose the Jetson Orin Nano 8GB if you need more flexibility, larger models, or room for future software growth; choose the Jetson Orin Nano Super Developer Kit if you are prototyping, learning, or benchmarking before building hardware. The right answer is less about buying the “fastest” board and more about matching memory, I/O, power, and thermal design to the job.
A simple selection checklist helps:
-
Start with the workload. List the models, camera streams, middleware, and background services you need to run.
-
Estimate memory honestly. If your prototype already feels tight on 4GB, do not expect production to become easier after adding monitoring and update services.
-
Test in the intended power mode. Benchmarks in high-performance modes are useful only if your final system can cool and power the module reliably.
-
Prototype on the developer kit first. It is the fastest way to validate software and peripherals before designing a carrier.
-
Move to a production module for deployment. A custom product should be built around the module, carrier, enclosure, and thermal design that fit its environment.
How the Nano fits among other Jetson Orin models
Within the broader Jetson Orin family, Nano is the compact, lower-power option. Jetson Orin NX raises the ceiling for workloads that need more AI performance, and AGX Orin goes further for high-end robotics, autonomy, and industrial systems. NVIDIA’s current Jetson module lineup presents Nano, NX, and AGX as part of the same edge AI ecosystem, all tied together by JetPack and the broader Jetson software platform.
That shared ecosystem is valuable. A team can prototype on Nano, optimize models with TensorRT and JetPack tools, and later move to a higher Orin tier if the workload outgrows the platform. Nano is often the right place to begin because it keeps size, power, and cost under control while still supporting serious edge AI development.
Final takeaway
The Jetson Orin Nano family is small, but the differences matter. The 4GB module is the efficient baseline, the 8GB module is the more forgiving production choice, and the Super Developer Kit is the best starting point for hands-on development. If you compare the jetson orin nano models by real workload needs instead of headline specs alone, it becomes much easier to choose a board that can run reliably today and still leave room for tomorrow’s edge AI ideas.
